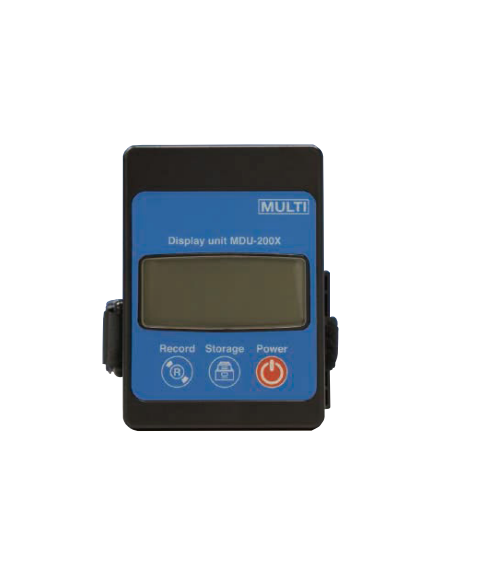

MULTI MDU-200X Display Unit For The Bluetooth Connecting Instrument

Receiving interval: Approx. 0.5s intervals

Auto power function:

When the APO mark is lighting, the power is automatically turned off approx.30min after the last switch operation

This function is disabled during communication connection (when the APO mark is off)

Data hold function: Pressed switch for holding value

Over range indication: Same as other connected measuring instruments

Data hold indication: "DH" mark on LCD with data hold value

Max(Peak) hold function:

Only HCL-36UX and ALCL-80X can be used

"MAX" mark on LCD with data hold value

Record function:

Data can be retained even when power off

Recoreded data can be saved onto the 4 data spaces every time pressing the Storage switch

Harmonics current display function:

Only ALCL-80X can be used

The RMS→fundamental →third harmonic measurement value is displayed

Low battery indication: "Battery" icon on LCD

Operating Temperature: Same as other connected measuring instruments

Storage Temperature: Same as other connected measuring instruments

Power supply: AAA alkali Battery x 3

Power consumption:

Communication standby: Approx.12mA

Communication connection: Approx.6mA

Size: 76(W)x97(H)x50.4(D)mm

Weight: Approx. 180g (with batteries inside)

Accessories:

Instruction manual:1

Batteries:3
