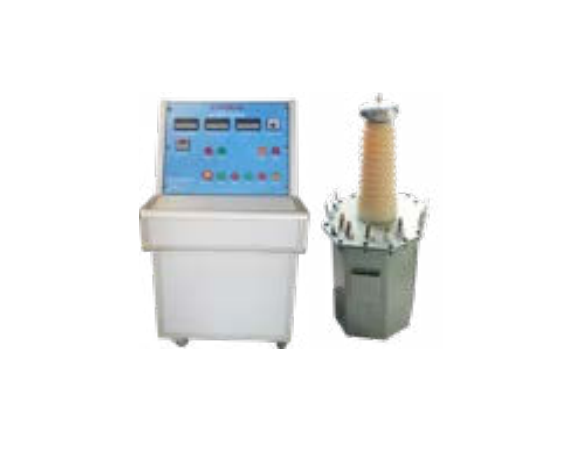

MultiTech MT10010AD-ADO AC/DC 고전압 시험 시스템 (10kVA)

Power Source:

Voltage: AC220V ±% 10

Frequency: 45 ~ 65Hz

Maximum Current: 45.5A

Safety Parameters:

Insulation Resistance: > 2MΩ

Leakage Current: < 3.5mA

Max. Output voltage: 1500 V (50 Hz RMS). It can withstand 1 minute.

Measurement Accuracy:

Current accuracy: + (% 2 x read + 1A)

Current accuracy level of this device: + (% 5 * read + 1A)

Voltage Accuracy: + (% 5 * + 1kV)

Triggered Time Accuracy: + (% 5 * read + 1kV)

Control Unit Parameters:

Control Table Output Voltage: AC 0 ~ 250V

Control Table Output Current: AC 0 ~ 50A

Time: 0 ~ 999s

HV Transformer Parameters:

Capacity: 10kVA

Input Voltage: 0 ~ 200V

Input Current: 0 ~ 50A

Output AC HV Voltage: 0 ~ 100kV

Output AC HV Current: 0 ~ 100mA

Output DC HV Voltage: 0 ~ 140kV

Output DC HV Current: 0 ~ 100mA

Output Meter Voltage: 0 ~ 100V
