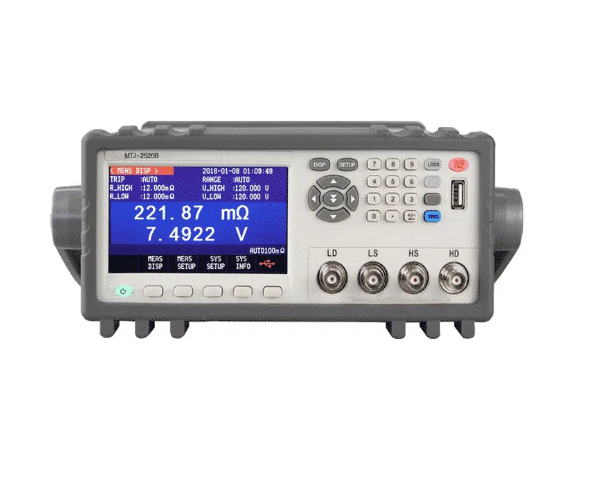

MultiTech MTJ-2520B 배터리 내부 저항 테스터 (0.01mΩ ~ 30Ω; 0.01mV ~ 60VDC)

Test Parameters:  AC Resistance, DC Voltage

Temel Accuracy:  Resistance: 0.5%; Voltage: 0.3%

Measuring Range:  0.01mΩ~30Ω; 0.01mV~60VDC

Signal Source:  AC 1kHz, Open Circuit Voltage <20mV, Test Current: <10mA

Range: Four range Automatic or manual

Hız : 10 times/sec.

Correcting : Short circuit zero clearance in full range

Trigger:  Internal trigger, manual trigger, external

Interface:  RS232 , Handler

Power Requirement : Voltage: 198VAC~240VAC, Frequency: 50Hz, Power: Max. 15VA
