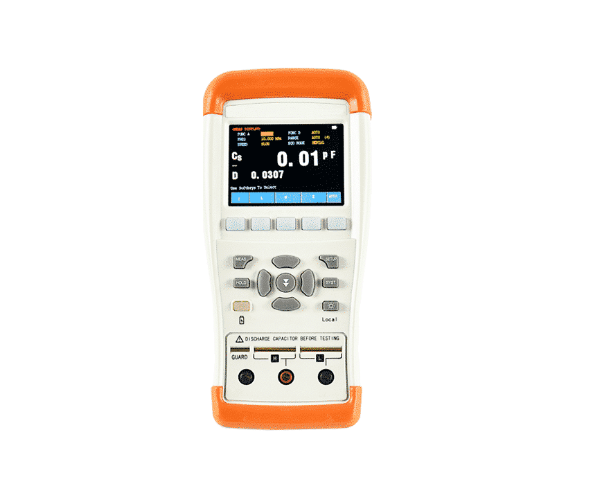

MultiTech MTJ-826 휴대용 LCR 디지털 브리지 미터 (100Hz, 120Hz, 1kHz, 10kHz, 100kHz)

Parameters : L, C, R, Z

Monitoring Parameters:  D,Q,θ(deg),θ(rad)ESR

Accuracy : 0.002

Frequency : 100Hz,120Hz,1kHz,10kHz,100kHz

Display Range

L: 0.01μH-9999H

Q: 0.0001 –9999

C: 0.01pF – 9999mf

θ(deg):-179.99°-179.99°

R,Z:0.0001Ω- 99.99MΩ

θ(rad):-3.1416 –3.1416

D: 0.001 –9.999

Source Resistance : 100 Ω

Usage:  Automatic or Manual

Signal Level : 0.6Vrms

Power Requirements

Input: 100-240V~50/60Hz 0.35A

Output: 9V 1A DC 7.4V, Lithium, 1300mAh Rechargeable battery
