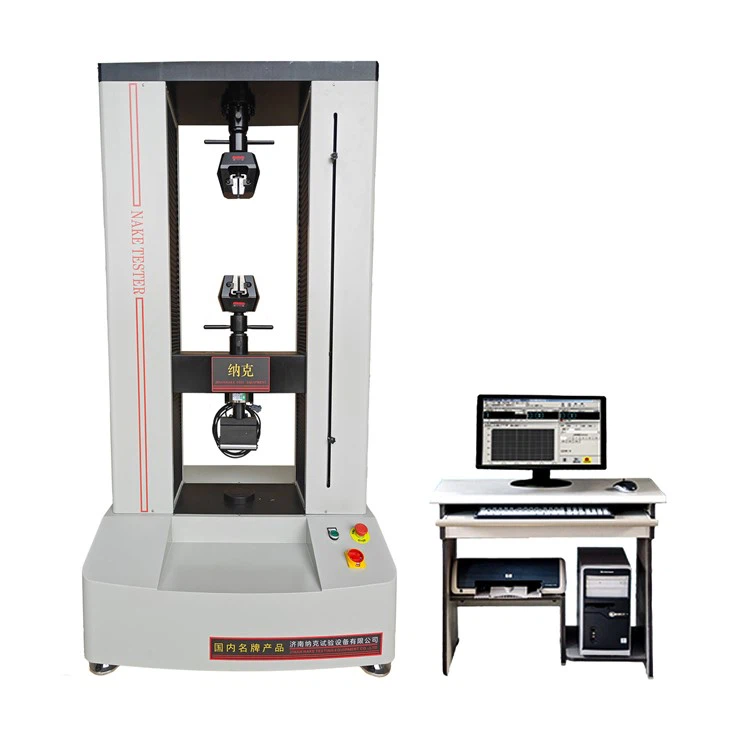

NAKE WDW-10 Computer Controlled Tensile Testing Machine Universal Testing Machine (10kN)

Structure: door structure, double space

Max. Load(kN): 10

Load accuracy: Class 1

Load range: 2%～100%F·S

Load resolution: 1/ 30000

Resolution of displacement: 0.01mm

Test speed(mm/min): 0.05-500

Speed accuracy: ≤±1%

Tensile space(mm): 600 (can be customized)

Compression space(mm): 600 (can be customized)

Test width(mm): 450

Can be equipped with clamps: Tension, compression, bending, shearing, peeling, tearing, etc.

Host size (L*W*H): 770*465*1730

Servo motor power (kW): 0.75

Power supply: AC220V±10%,50Hz/60Hz(can be customized)
