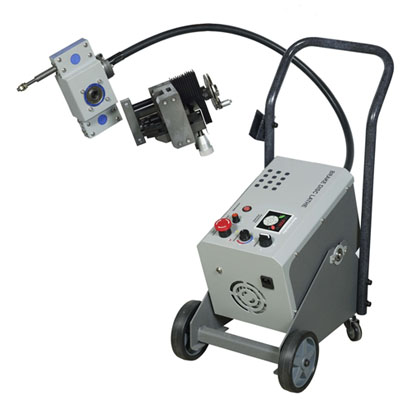

Neomotec NEO2200 Brake disk lathe

Work scope: Thickness – 42mm / Disk diameter – 450mm / Grinding all types

RPM: 1 ~ 120 RPM (Continuously variable transmission) / High performance

Main motor: 220/380V 50/60Hz 3Phase 1/2 HP

Precision: 0.05mm (0.001969 inch)

Quality certification: ISO9001/14002, CE

Input power: 100/220V 50/60Hz

Run-out: MAX 0.003mm (0.000079 inch)

Adjusting RPM: Built-in inverter / digital display installed

Driving system: Screw cable linear drive
