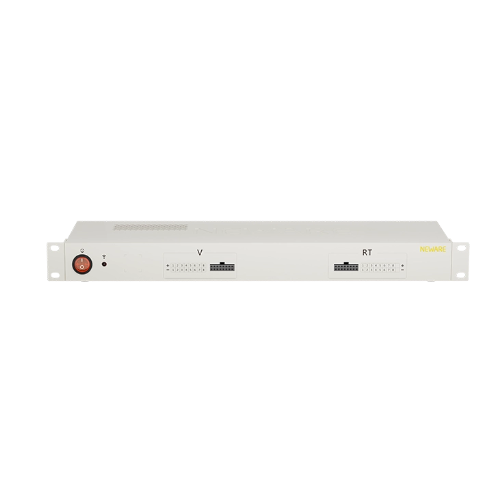

NEWARE CA-4008n-1U-5VT-TC Auxiliary Access Device (15W)

- Voltage

+ Test specification: 0V~5V

+ Accuracy: ± 0.05% of FS

- Temperature

+ Test specification

. Thermistor: -30℃ ~120℃

. Thermocouple: -200℃ ~260℃

+ Accuracy: ± 1℃ (within 2m of line length)

+ Temperature resolution: 0℃.1

- Frequency of sampling

+ Time: 10Hz（100ms）

- Communication mode: RS485

- IP levels of protection: The protection level is IP20

- Number of machine channels: 8

- Number of temperature auxiliary channels per primary channel: Optional (1~248)

- Number of voltage-assisted channels per primary channel: Optional (1~248)

- Operating temperature range: 0℃~40℃

- Storage temperature range: -10℃~50℃

- Relative humidity range of the working environment: 70% RH (no moisture condensation)

- Storage environment relative humidity range: 80% RH (no moisture condensation)

- Case size per unit (W * D * H) (mm): 1U （19"） 482*170*50
