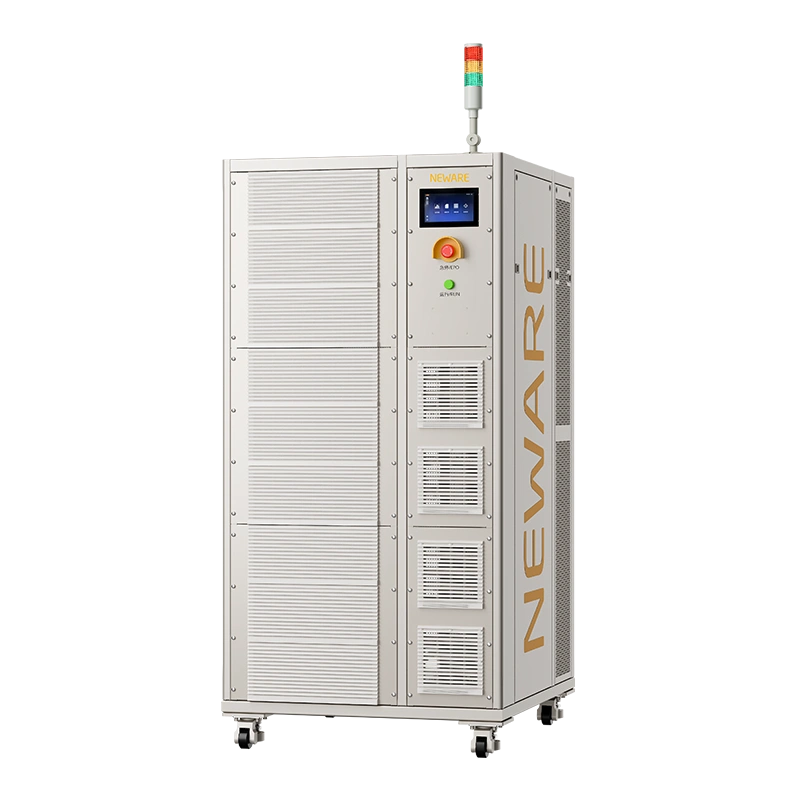

NEWARE CE-6002-1500V200A Ultra-High Voltage Battery Cluster Solution (1500V, 200A)

Output Voltage Range (Charge): 0V ~ 1500V

Output Voltage Range (Discharge): 100V ~ 1500V

Minimum Discharge Voltage: 100V

Accuracy: ±0.02% of F.S.

Resolution: 24-bit

Output Current Range: 1A ~ 200A

Accuracy (Independent Range): 0.02% of F.S.

CV Cut-off Current: 0.05% of F.S. (Each Independent Range)

Resolution: 24-bit

Single Channel Output Power: 300kW

Total System Output Power: 600kW

Current Response Time: ≤10ms

Current Conversion Time: ≤20ms
