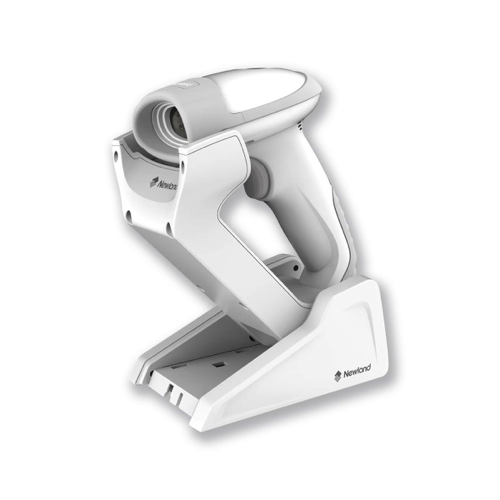

NEWLAND HR3280-BT-HC Wireless 2D Barcode Scanner (CMOS 1280×800; ≥3mil)

Image Sensor: 1280×800 (MP) CMOS

Light Source: White LED & Red LED (622nm-628nm)

Barcodes: 1D; 2D

Resolution: ≥3mil

Depth of Field: EAN-13: 50mm-495mm (13mil). Code 39: 85mm-220mm (5mil). PDF 417: 70mm-215mm (6.7mil). Data Matrix: 50mm-220mm (10mil). QR Code: 20mm-325mm (15mil).

Scan Angle: Pitch: ±55°, Roll: 360°, Skew: ±55°

Field of View: Horizontal 39°, Vertical 24°

Minimum Symbol Contrast: 25%

Aiming Light: Blue LED (515nm-535nm)

Communication Modes: Synchronous, Asynchronous, and Batch Modes

Radio Technology: Bluetooth 5.0

Communication Distance: 50m/164ft (outdoor line of sight)

Battery: 2400 mAh lithium-ion battery

Expected Charge Time: 4 hours (with power adapter)

Expected Battery Life: 12 hours continuous operation (scanning once every 6 seconds)

Memory Capacity: ≥15000 Code 128 segments (20 bytes per Code 128)

Connectivity: RS-232, USB

Operating Voltage: 5VDC±5%

Dimensions: Scanner: 113.5(W)×73.3(D)×159.0(H)mm

Weight: Scanner: 217g

Notification: Beeper; LED

Operating Temperature: -20°C to 60°C

Storage Temperature: -40°C to 70°C

Humidity: 5%~95% (non-condensing)

ESD: ±8 KV (air discharge); ±4 KV (contact discharge)

Drop Resistance: Scanner: 1.5m/4.9ft Cradle: 1m/3.3ft

Protection Standard: IP42
