Conditions
Specifications are valid for -40 °C to 70 °C unless otherwise noted.
Network Interface
Network ports used
TCP:830 (configuration only)
TCP:2537 (configuration only)
UDP:5353 (configuration only)
TCP:5353 (configuration only)
UDP:7865 (configuration only)
UDP:8463 (configuration only)
Network IP configuration: DHCP + Link-Local
Ethernet
Number of ports: 4 ports, internally switched1
Network interface
1000 Base-TX, full-duplex
1000 Base-TX,half-duplex
100 Base-TX, full-duplex
100 Base-TX, half-duplex
10 Base-T, full-duplex
10 Base-T, half-duplex
Communication rates: 10/100/1000 Mbps, auto-negotiated
Maximum cabling distance: 100 m/segment
Maximum hops per line: 15
Timing and Synchronization
Protocol: IEEE 802.1AS for network synchronization over 1000 Base-TX, full-duplex
Network synchronization accuracy: <1 μs
Network synchronization accuracy with optimized configuration: <100 ns
Power Requirements
Maximum power consumption: 5 W
Power supply voltage: 9 V to 30 V
Power wire gauge: 0.20 mm2 to 1.31 mm2 (24 AWG to 16 AWG)
Physical Characteristics
Weight: 406 g (14.3 oz)
Dimensions: 30.0 mm × 88.1 mm × 106.9 mm (1.18 in. × 3.47 in. × 4.21 in.)

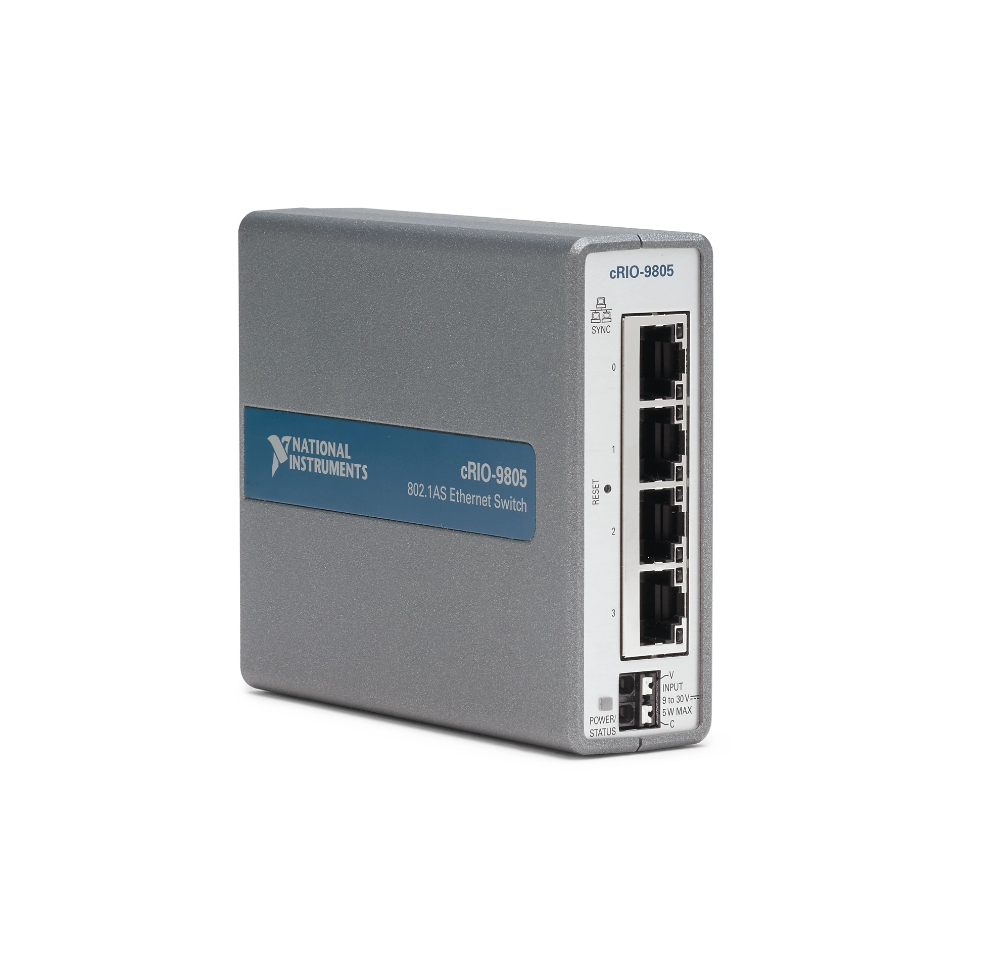

Expands the processor I/O from an NI controller to meet additional application requirements.
The Expansion Module for CompactRIO connects to the processor I/O, such as USB and Ethernet, of a controller to expand its functionality. This module works with CompactRIO Controllers, Industrial Controllers, CompactRIO Single-Board Controllers, and PXI Controllers to expand the capabilities of the system, such as adding additional storage for saving more data and increasing the number of USB or time-sensitive networking (TSN) Ethernet ports of the system. Additionally, the Expansion Module for CompactRIO features the same rugged shock and vibration ratings as other CompactRIO modules, and you can can mechanically connect it to a controller for integration using mounting accessories.
