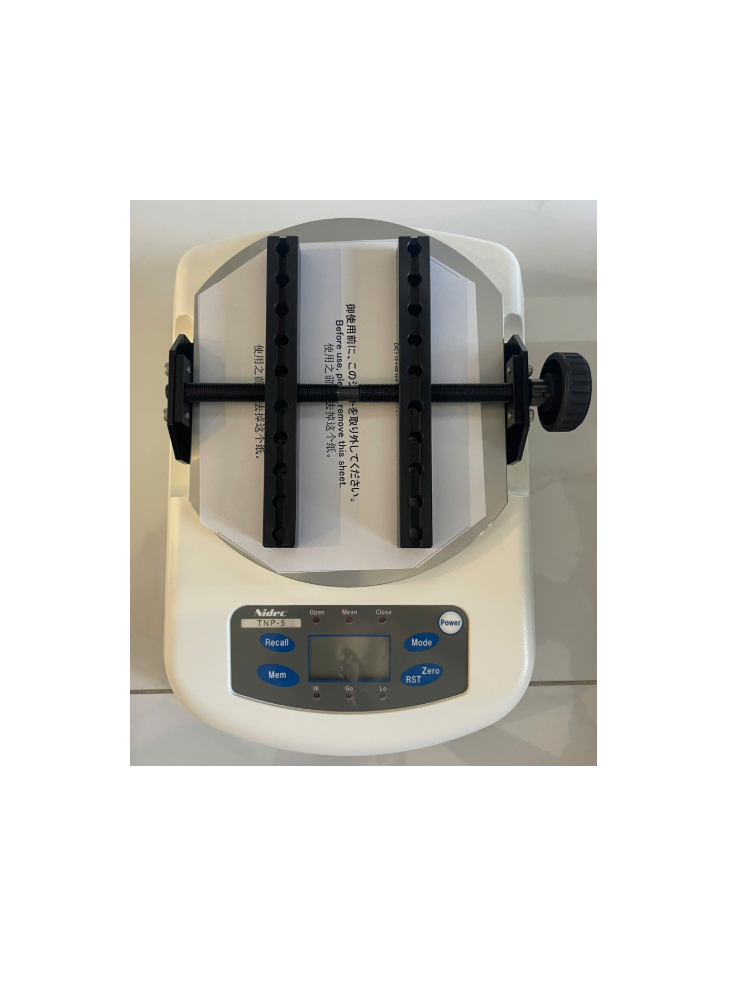

NIDEC-SHIMPO TNP-5 Digital Torque Meters (0.000 ~ ±5.000 N·m)

Rated torque: 5 N·m

Measurement range: 0.000 to ±5.000 N·m

Measurement unit: Selects between N·m and N·cm

Display range: 0 to 5.000 N·m / 0 to 500.0 N·cm

Display resolution: 0.001 N·m / 0.1 N·cm

Chuck range: Ø10 to Ø190 mm

Overload display: Displays "OVR" on the LCD's sub display parts, 3 LEDs (Open, Mean, Close) blink

Display parts:

Number display parts: 4-digit LCD display, Font height: 12 mm

Unit display parts: 3-digit LCD display, Font height: 7 mm

Judgment LED: Judgment LED (Hi, Go, Lo)

Accuracy: ±0.5% F.S.

Measurement Modes

Opening mode: Max. value display at opening (PEAK display): Displays the maximum value of torque applied to the measurement table

Fitting mode: Max. value display at fitting (PEAK display): Displays the maximum value of torque applied to the measurement table

Average mode: Real time display (Average value display): Displays the value of torque applied to the measurement table in real time

Display cycle:

Selects among 0.125 sec (8 times/sec), 0.25 sec (4 times/sec), 0.5 sec (2 times/sec), 1 sec (1 time/sec)

Fixes at 0.125 sec when the peak is displayed

Sampling cycle: 1 msec (1000 times/sec)

Memory

Number of memory data: 1000 sets (max.)

Statistics process: Average value, max. value, min. value

Interface

Data output: USB1.1

PC software: Can import data using PC software (Digitorg_TNX)

Accessories: USB cable, AC adapter

Power supply: Built-in NiMH battery, or AC adapter (AC100V to 240V)

External dimensions (mm): Width 227 × Depth 320 × Height 126 mm

Weight: 12.5 kg
