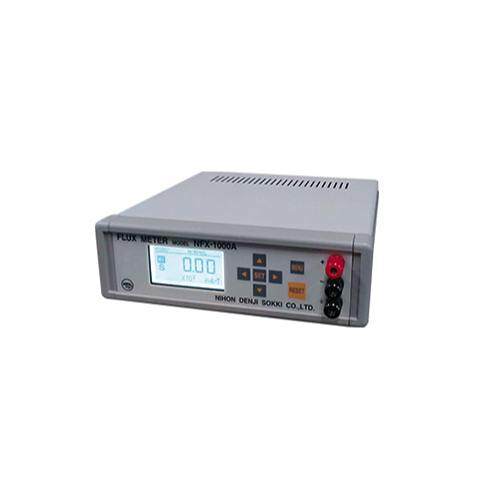

Nihon Denji Sokki (NDK) NFX-1000A Flux Meter (3 Range ×10², ×10³, ×10⁴; 1-99.99×10⁴)

Display Unit: µWb・T (10µWb = 1K Maxwell)

Measuring Scope: 1-99.99×10⁴

Measuring Range: 3 Range×10², ×10³, ×10⁴

Resolution: 1µWb

Accuracy: ±1%/Fs±1 Digit within range

Main Functions: Comparator, Passage measurement, Absolute value display, P/H Measurement, Auto drift function, Compensation value input

Communication Interface: RS-232C.USB

Analog Output: ±2.5V/FS

Power Requirements: AC85-250V, 50/60Hz, 0.5A

Dimensions [W×D×H]: 210×230×66mm

Weight: 2.3kg
