Nihon Denji Sokki (NDK) UHS-3DS R-Z Magnet Analyzer ([X: 150]; [Y: ±5]; Z: 165 mm)

Measurement Item: Rotation, Z axis

Automatic measuring distance/ Manual measuring range: [X: 150]; [Y: ±5]; Z: 165 mm

Display scope: 0.01mT~3.000T

Measuring range: 30mT, 50mT, 100mT, 300mT, 500mT, 1T, 3T, 5T

Resolution: 18.000P/R

Accuracy: DC magnetic field ±2% (full scale of measuring range)

Functions: UHS・1DS+, 3D display, zero-crossing phase angle calculation, pseudo-waveform comparison, 3D to 2D conversion

Probe options: Transverse type: 50102U, 50103U, 50105U; Axial type: 50112U, 50113U

Personal computer used: Windows 10 with USB port

Power input: AC100±10V, 5A

External dimensions [W×D×H]: 380×400×830mm

Weight: approx. 10 kg

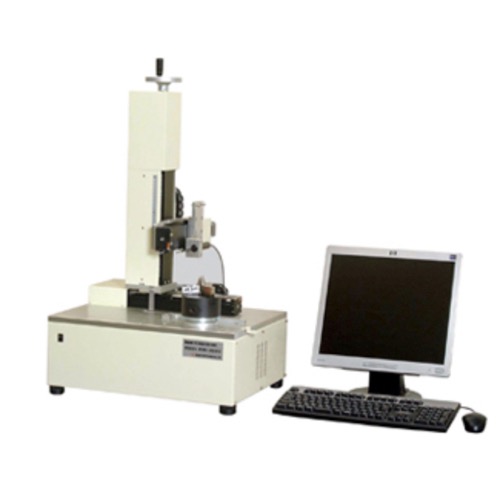

*Image for illustrative purposes only
