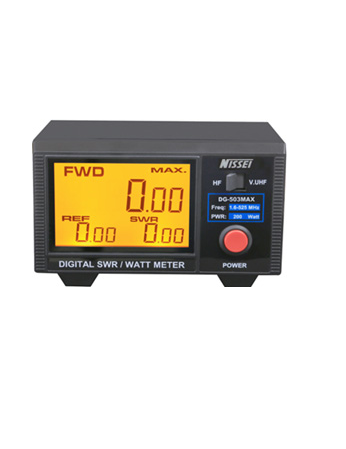

NISSEI DG-503MAX Digital SWR / Watt Meter (0–200 W, 1.6–60 MHz / 125–525 MHz)

Frequency Range: 1.6-60 MHz/125-525 MHz

Measurement (Analog mode): CW, FM, FDMA

Measurement (MAX mode): DMR (TDMA), AM, SSB

Calibration point: 28/145/435 MHz

Power Range: 0-200W

Accuracy: (+/-5%)

Minimum Power for SWR: 1W

Input/Output Connector: SO239 (N-female option)

Weight (Net): 750 g

Insertion Loss: Less than 0.1 dB

Testing Function: Fwd/Ref Power & VSWR ratio

Input/Output Impedance: 50 Ohm

Dimension (W/H/D) mm: 140 x 84 x 122

Accessories: Operation Manual, 12V DC Wire
