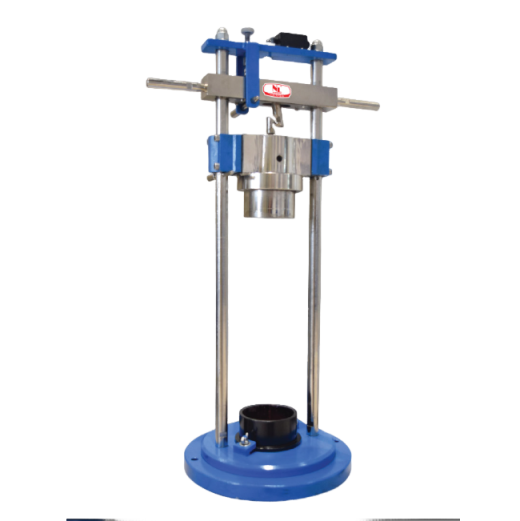

NL Scientific NL 1002 X / 002 Aggregate Impact Value Apparatus (470 (L) x 330 (W) x 850 (H) mm, 48 kg)

Dimension (mm): 470 (L) x 330 (W) x 850 (H)

Approx. Weight: 48 kg

Unit Consists Of :

NL 1002 X / 001 - P 001 Cylindrical Mould Ø 102 x 50 mm 1no.

NL 1002 X / 001 - P 002 Cylindrical Measure Ø 75 x 50 mm 1unit

NL 1002 X / 001 - P 003 Tamping Rod 1no.

*1 Copy of Manual Instruction

Standard: BS 812, NF P18-574

Features:

Strong Rigid Steel Frame: The apparatus is constructed with a sturdy steel frame to provide stability and durability during testing.

Mechanical Blow Counter: It is equipped with a mechanical blow counter to accurately count and record the number of impacts applied to the aggregate sample during testing.

Standardized Impact Testing: The apparatus applies a standardized amount of impact to the aggregate sample, ensuring consistency and repeatability in test results.

Measurement of Fines Produced: After subjecting the aggregate sample to impact, the apparatus allows for the measurement of the percentage of fines produced. This measurement helps to assess the aggregate's resistance to impact loading.
