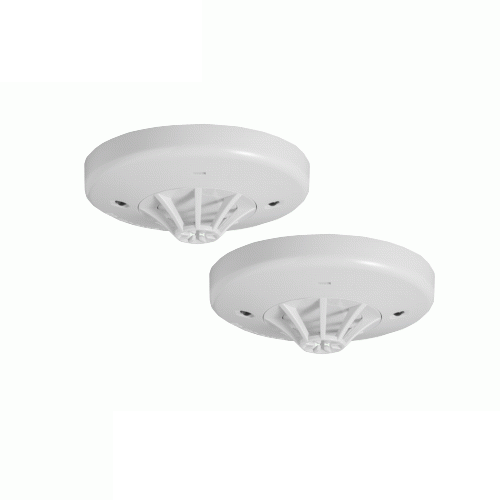

NOHMI FDHU003-D-X Fixed Temperature heat Detector

Working voltage range: 22.0 ~ 24.0 V

Standby current: 250 μA

Alarm indicator: 2 LEDs

Alarm indicator current: 1.5 mA D.C

Alarm set-point range: 57°C ~ 79°C (135°F ~ 174°F)

Nhiệt độ: 0°C ~ 38°C (32°F ~ 100°F)

Operating relative humidity range: 0% to 93% (Non-condensing)

Start-up time: Max. 1 sec.

Color: Eggshell White

Weight (without base): 65g (2.29 oz)

Dimensions (without base): Height: 30.7mm (1.21 inch) Diameter: 99mm (4.0 inches)
