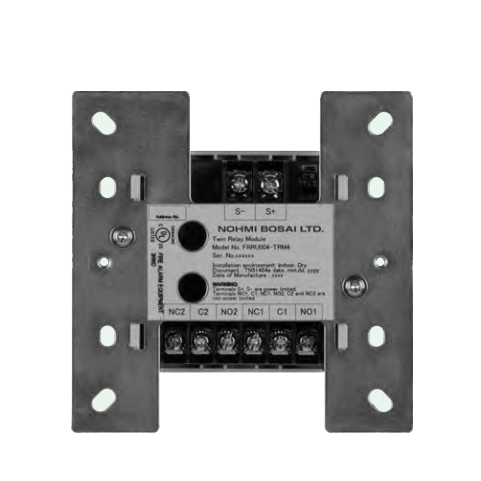

NOHMI FRRU004-TRM4 Twin Relay Module

Rated voltage range of SLC input power (S+,S-): 22.0 to 24.0V

Maximum SLC 24 VDC standby current (S+,S-): 250µA

Maximum SLC 24 VDC alarm current (S+,S-): 1mA

Contact output style: Typical Form C × 2

Output rating (resistive): 24VDC/2A; 125VAC/0.5A

Operating temperature range: 0°C to 49°C (32°F to 120°F)

Operating humidity range: 0 to 93% (non-condensing)

Dimensions: 106mm (4.17 inches) (H) × 106mm (4.17 inches) (W) × 29mm (1.14 inch) (D)

Applicable electrical box for installation: North American 64mm (2-1/2 inches) deep 2-gang box

Standard 4 inches square box 38mm (1-1/2 inch) deep box
