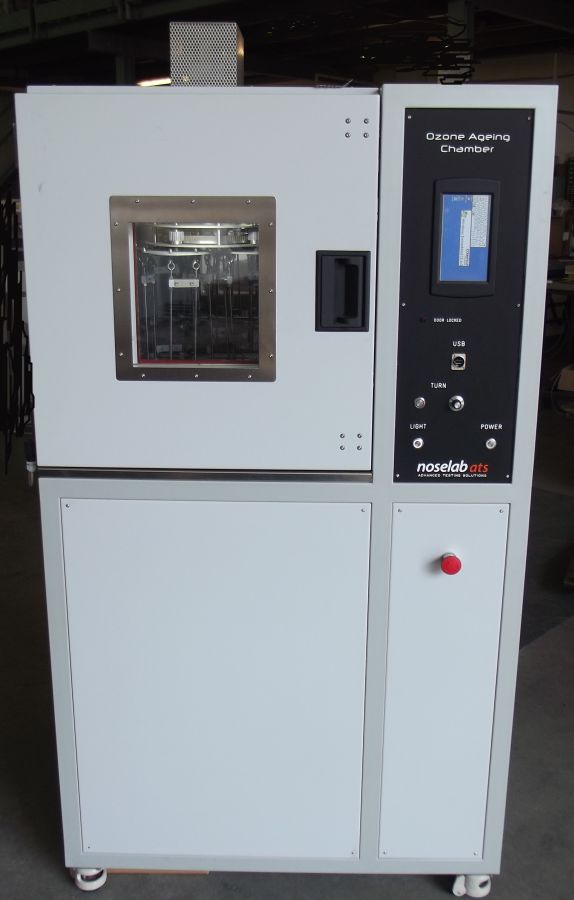

Test chamber made of stainless steel, equipped with a hermetic gasket and a tempered glass allowing visual observation of specimens
Inner dimension of test chamber: 500 × 450 × 450 mm (110 litres approx.)
Digital thermoregulator insuring constant 20° to 100°C temperature range
Heat exchangers for a connection to a refrigerating source (e.g. cryostat, water, or else) for operating at a temperature lower than ambient
Equipped with a fan for spreading air mixture uniformly in the test chamber
Door safety locking system
Temperature controlled by a thermoregulator that guarantees a uniformity of ±2°C in the range +10° to +60°C
Ozone generator consisting of a silent discharge generator
Ozone concentration detected by U.V. electronically controlled and fully automatic, it measures with extreme precision ozone content in the range 10–500 ppm determining the absorption due to the present ozone detected at a wavelength of 254 nm, LED source U.V.
The results are presented as a ppm on a digital display and are free of interference due to the presence of other gases or moisture
The analyzer is particularly suitable for long-term checks
Replacement of air from 1/3 changes / minute
Continuous cyclic filtration system with activated carbon
Complete viewing port (without condensation)
Humidity Range: 20% rH to 85% rH
Humidity Uniformity: ±3% rH
Rotational Planetary Support for the Test Device Static
Rotational Planetary Support for the Test Device Dynamic
Rotational speed 1/10 up to 1 rotation / min
PLC Controller Touch screen: program 100 groups 120 sections
Various safety functions and protection from over-current and over-temperature
RS 232 communication port
Dimensions: mm 900x900x 1600/1700 mm h
Internal Dimensions : 450 x 450x 500 mm h
Power: 230V, 50Hz
