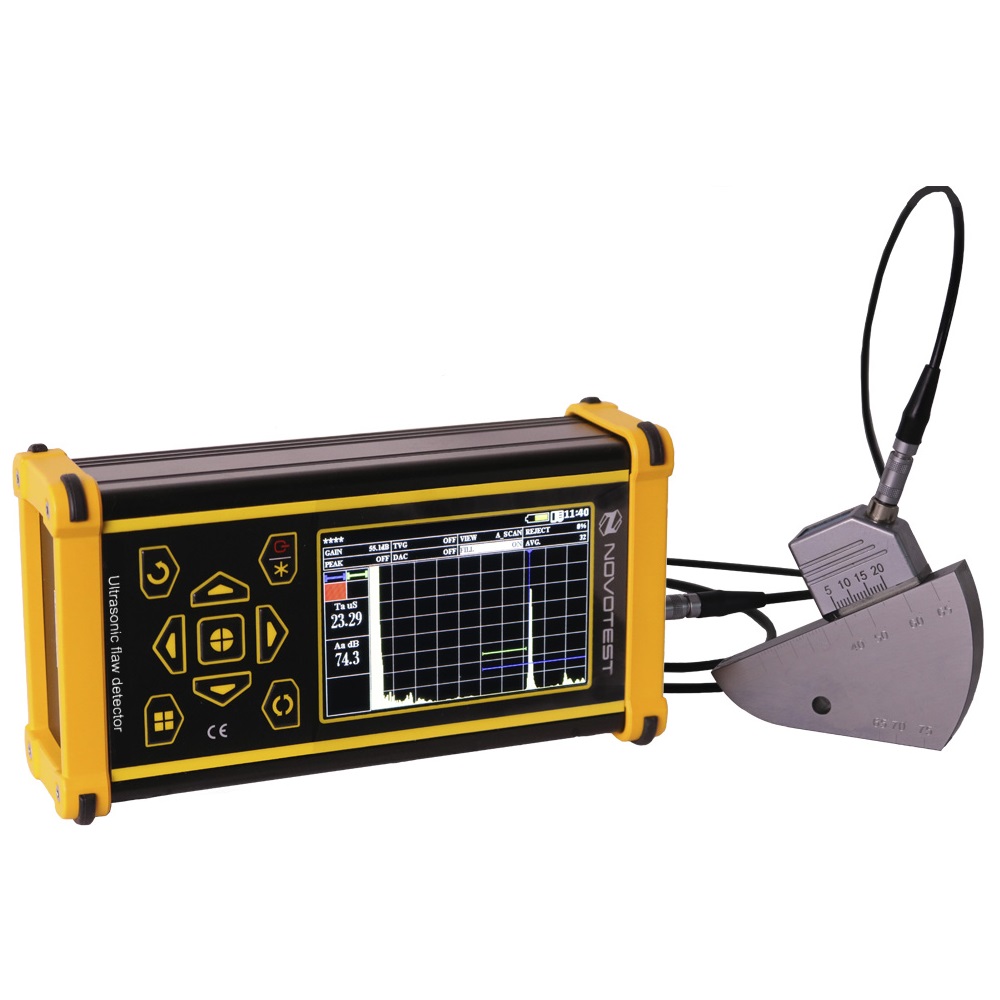

NOVOTEST UD2303 초음파 결함 검출기 (1~10MHz; 1000~9999m/s)

Operating frequency range: from 1 to 10MHz

Range of measured time intervals (duration of scanning): from 6 to 1000 µs

Velocity range: 1000 – 9999 m/s

Testing gain range: 126 dB

Range of variation of temporal sensitivity adjustment (TVG): 1-40 dB

Number of control points TVG: 16

Duration of the excitation pulse to the load: from 12.5 to 0,5 µs

Scan range: from 8 up to 250 μs (500 and more by special order)

                    from 0,48mm up to 1500mm (in Steel V=6000m/s) (3000m and more by special order)

Sweep delay range: from 0 up to 1000 μs

Operating modes: DAC, TVG, DGS, AWS, AFS, ASD

Menu language: English, Russian

Dimensions (W*H*L): 165x90x50 mm

Power Supply: Built-in Li-ion Battery

Time of continuous work, not less than, h: 8

Operating temperature range for the electronic unit, °C: -20 to +40

Air moisture, no more: ≤98 %, at 35 °С

Weight, not more: 500 g

Standard package:

- Ultrasonic flaw detector UD2303

- UT-probes – 2 pcs

- Cable Lemo-Lemo – 1 pc

- Charger

- USB cable for PC connection

- PC program ( available from site download )

- Operating manual

- Case

Optional accessories:

- Additional probes (UT) and cables

- Standard calibration blocks

- Custom calibration blocks

- Couplant (gel)

Description:

Ultrasonic flaw detector UD2303 is a compact version of an industrial flaw detector with a set of functions and modes that are designed to simplify the routine process of product quality control as much as possible. Shock-resistant aluminum alloy case with a large battery will provide a long service life of the device and ability to be used in adverse conditions.

Advantages:

- Automatic calibration

- Intuitive device menu

- Adjustable excitation pulse generator

- Saving measurement results and ability to viewing

- Transfer of archived records to PC
