CMRR: 122 dB typical; 117 dB min
Width: 32.5 mm
Height: 114 mm
Length: 73 mm
Weight: 300 g
Accuracy: ± 0.1 %
Mounting: DIN Rail 35 mm Standard or Wall Mount
Isolation: 4000 Vrms/ 1min
Linearity: <±0.1%
Materials: Polycarbonate

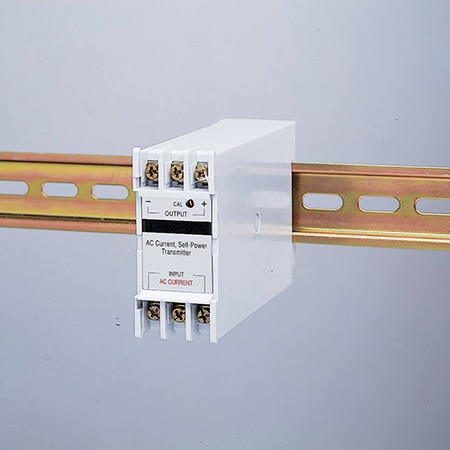

Input Type: AC Current
Output Value: Process
Accuracy Note: ±0.1% (for 5 to 120% of span) typical; ±0.15% max
Output Ripple: < ± 0.1% of span
Output Signal: Current
Response Time: < 240 msec (10 to 90%)
Linearity Note: < ±0.1% (for 5 to 120% of span) typical; ±0.15% max
Loop Resistance: Loop Impedance: Rmax (Ω) = 16/0.02 = 800 Ω max @ 20 mA
Input Range Note: Input: 0 to 1 Aac, 0 to 5 Aac ;Overrange: 6 Aac (for full accuracy);Overload: 10 Aac continuous;Peak Overload: 40 Aac for 5 seconds every 10 minutes
Number of Inputs: 1
Electrical Output: 4 to 20 mA
Power Consumption: 0.6 VA @ 5 A
Relative Humidity: 5 to 95% RH, noncondensing
Supply Power Type: Loop Powered
Frequency Accuracy: ± 0.02%/Hz
Supply Power Effects: 40 to 400 Hz
Temperature Stability: <0.01%/°C
Lead Compensation Error: < ±0.02% for full load change
Storage Temperature, Max: 90 °C
Storage Temperature, Min: -40 °C
Voltage Measurement Range: N/A
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -20 °C
