OMEGA FOM-L201-4 -80~300 °C 광섬유 모니터

Width: 4.9 in

Height: 2.7 in

Length: 7.1 in

Memory: 2 TB

Weight: 450 g

weight: 450 g

Accuracy: ± 1 °C (± 1.8 °F)

Resolution: 0.1 °C

Accuracy Note: ± 1.0 °C (+/- 0.2 °C in relative temperature)

Output Detail: Optional external module (4-20 mA and 0-10 V, software selectable), with 8 programmable outputs

Output Signal: Current

Repeatability: 0.2°C

Data Interface: RS485, USB

Supply Voltage: 5 Vdc

Number of Channels: 4

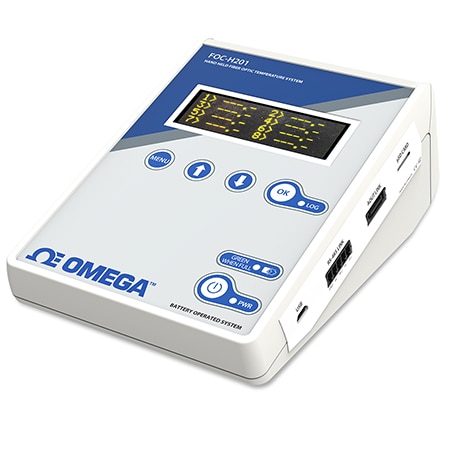

Portability Option: Rechargeable battery (FOM-H201 version)

Response Time Note: Typically, 0.2 to 0.5 seconds per channel

Response Time, Max: 0.5 sec

Response Time, Min: 0.2 sec

Data Interface Note: RS-485 and USB output with Modbus

Probe Compatibility: All Omega fiber optic probes, most competitive GaAs probes

Additional Features 1: USB powered

Electrical Connection: ST Connector

Process Temperature, Max: 300 °C

Process Temperature, Min: -80 °C

Operating Temperature, Max: 55 °C

Operating Temperature, Min: -40 °C
