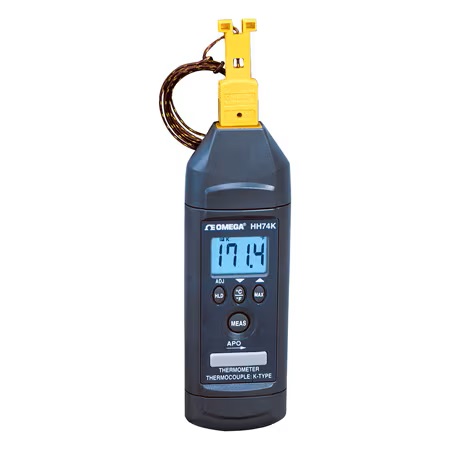

OMEGA HH74K K형 온도계 (-100 to 850°C, type K)

Specifications

Display: 3 1⁄2 digit LCD

Low-Battery Indication: The Symbol is displayed

Measurement Rate: 2.5 times per second

Operating Environment: 0 to 50°C (32 to 122°F) @ <70% RH

Storage Environment: -20 to 60°C (-4 to 140°F), 0 to 80% RH with battery removed from meter

Stated Accuracy: 23 ±5°C (73 ± 9°F), <75% RH

Battery: Three 1.5V “AAA” (included)

Battery Life: 300 hours, typical use

Temperature

Range: -100 to 850°C (-148 to 1562°F) Type K (CHROMEGATMALOMEGATM)

Resolution: 1°C or 1°F, 0.1°C or 0.1°F

Accuracy (Does Not Include Probe): 18 to 28°C (64 to 82°F) ambient ±(0.3% rdg + 1°C) on °C ranges ±(0.3% rdg + 2°F) on °F ranges

Resolution Range

 0.1°C: -59.9 to 199.9°C

 1°C: -100 to -60°C, 200 to 850°C

 0.1°F: -59.9 to 199.9°F

 1°F: -148 to -60°F, 200 to 1562°F

Dimensions: 148 H x 48 W x 24 mm D (5.8 x 1.9 x 0.94")

Weight: Approximately 74 g (2.6 oz) with battery

Connector: SMP

Comes complete with operator’s manual, thermocouple, magnet hanger, NIST certificate (no points) and 3 “AAA” batteries

Datasheet
