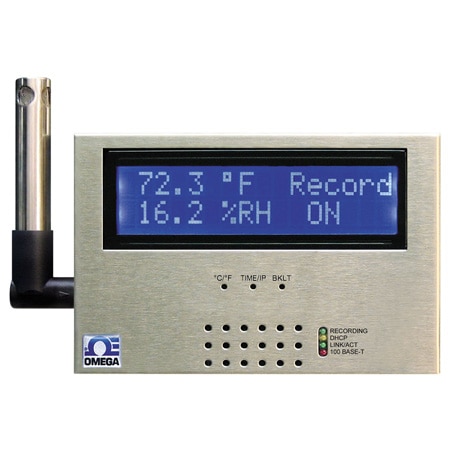

OMEGA ISD-TH 인터넷을 통한 환경 모니터링 및 기록 (60 °C, 0 to 100% RH, Probe, Wall mount bracket)

Alarm: Alarm I/Os: Two contact inputs, TTL 0.5 mA with 10K pull-up; one open collector output 150 mA @ 30 Vdc

Width: 6.13 in

Height: 1.31 in

Length: 4.69 in

Memory: 2 GB SD Flash Card

Weight: 1.08 lb

Display: LCD

Approvals: CE, FCC-B

Hysteresis: ± 1% RH

Input Type: External

Form factor: Wall mount bracket

Memory Note: 8 months of data storage at 1 second recording intervals or 7 years at 10 sec intervals

Probe Style: Standard Probe

Samples,Max: 85k Samples, Interval 1 sec, 1 Second recording intervals or 7 years at 10 sec intervals

Sensor Type: Probe

Cable Length: 6 ft

Display Note: 32 digits 4.8 x 9.7 mm (0.19 x 0.38")

Probe Length: 3.3 in

Relay Output: 1.5 A @ 30 Vdc

Accuracy Note: Accuracy/Range at 25°C: Non-Condensing: 10 to 90%: 2.75% RH, 5 to 10% and 90 to 95%: ± 3%, 0 to 5% and 95 to 100%: ± 4%

Configuration: Internal Web UI

Logging Modes: Fixed interval

Non-Linearity: ± 3%

RH Resolution: 0.1%, 12 bit

Repeatability: ± 0.1%

Response Time: Temperature: 5 to 30 sec, RH: 8 sec

Data Interface: Ethernet

Probe Diameter: 0.5 in

Supply Current: 0.5 A

Supply Voltage: 9 to 12 Vdc

Measurement Type: Relative Humidity, Temperature

Number of Relays: 2

Supply Power Note: AC Power Adaptor (Included):, Nominal Output: 9 Vdc @ 0.5 A , Back-Up Battery: 9 Vdc, Alkaline (included)

Supply Power Type: DC/Battery

Calibration Option: N/A

Response Time Note: Temperature: 5 to 30 seconds, tau 63%, RH: 8 seconds, tau 63%

Data Interface Note: Ethernet : (RJ45) Fixed or auto negotiating 10/100BASE-T, AUTO MDI/MDIX Protocols: TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet

RH Measurement Range: 0 to 100% RH

Temperature Accuracy: ± 0.5 to ± 1°C

Battery Size and Type: Alkaline 9V

Electrical Connection: N/A

Cable Temperature, Max: 125 °C

Cable Temperature, Min: -40 °C

Number of Measurements: 2

Temperature Resolution: 0.1 °C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Temperature Repeatability: ± 0.1 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: 0 °C

Relative Humidity Accuracy: ± 2.75% for 10 to 90%; ± 3% for 5 to 10% and 90 to 95%; ± 4% for 0 to 5% and 95 to 100%

Temperature Measurement, Max: 60 °C

Temperature Measurement, Min: 0 °C

Battery Operating Temperature: -18 to 55 °C

AC Adaptor Operating Temperature: 0 to 40 °C
