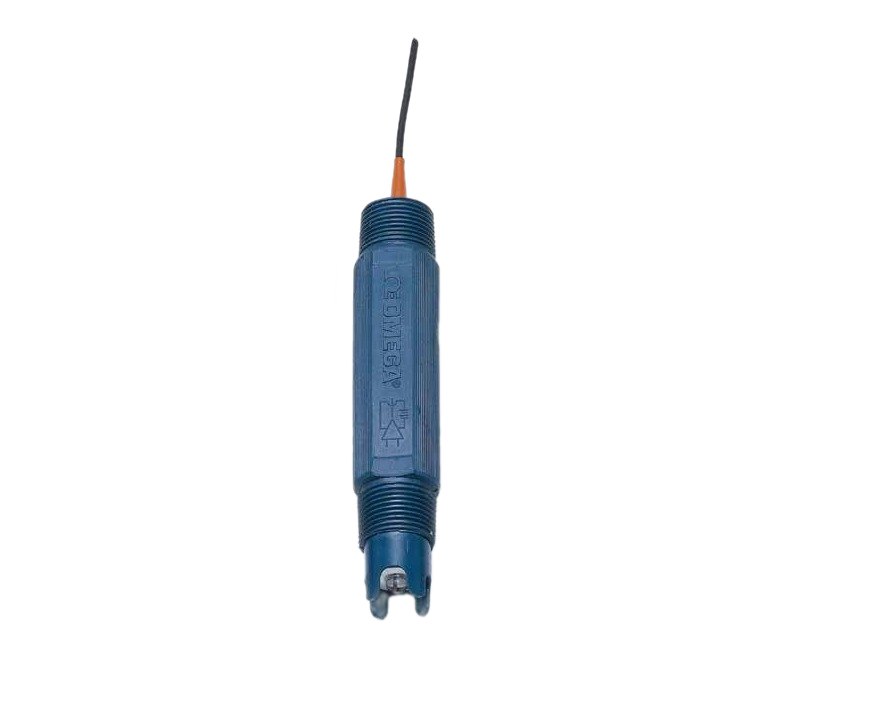

OMEGA PHE-7352-15 pH 전극 (0 ~14 pH, 0 ~ 100 psi)

Description: Heavy-duty submersible pH electrode

pH range: 0 to 14 pH

Temperature Range: 0 ~ 80 °C (32 ~ 176 °F)

Pressure Range: 0 ~ 100 psi β ±0.1% over full range

Sodium Error: Less than 0.05 pH in 0.1 Molar Na+ ion @ 12.8 pH

Impedance: 150 MΩ @ 25°C (77°F)

Reference Cell: Double junction KNO₃ and KCl/AgCl

Zero Potential: 7.0 pH ± 0.2 pH

Wetted Materials: PPS, PTFE, FKM, glass

Response Time: 95% of reading in 10 sec

Drift: <2 mV per week

Process Connection Type: NPT Male

Process Connection Size: 3/4"

Features: Submersible

Comes complete with 4.6 m (15') cable and operator’s manual.

Datasheet

User manual
