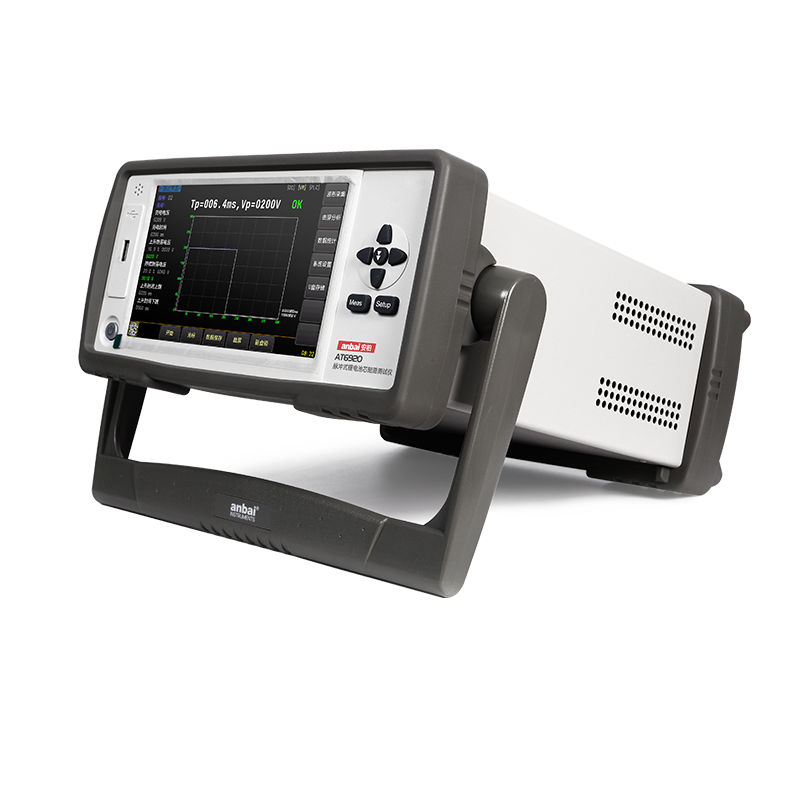

ONMEAS AT6920 Pulse-Type Lithium Battery Cell Short Circuit Tester (50V~2000VDC, 10ms to 1000ms, 20nF-600nF)

Parameter: Battery short circuit test

Accuracy: ±(1% × set value + 2V)

Voltage: 50V~2000VDC (programmable voltage source)

Test Duration: 10ms to 1000ms

Test Duration Accuracy: ±(2% × set value + 2ms)

Cell Capacity: 20nF-600nF

Number of Storage Groups: 100

Decision Parameters: Charge time / Hold voltage / Drop voltage

Determination Method: AT/AV

Judgment Result: OK/NG (and classification of fault types)

Display: Dual waveform comparison display (test waveform vs reference waveform)

Output Interface: RS-232C / RS-485 / USB / LAN / Handler

Display and Functions: 7 inch TFT-LCD display / U-disk data recording / Keyboard lock / Data hold function / Internal flash memory

Accessories: Test line / ATL108 RS232 communication cable
