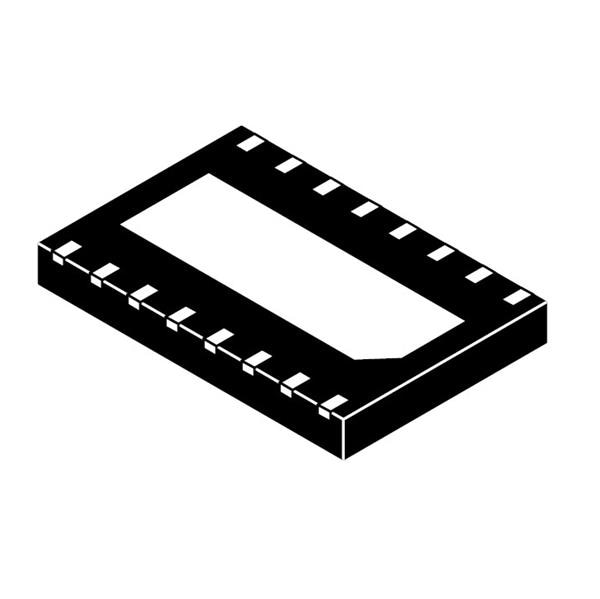

onsemi CM1236-08DE ESD 서프레서 4채널 ESD 8kV

Polarity: Bidirectional

Unit Weight: 53.460 mg

Current Rating: 100 mA

Working Voltage: 5 V

Clamping Voltage: 9.2 V

Breakdown Voltage: 6 V

Termination Style: SMD/SMT

Number of Channels: 8 Channel

Ipp - Peak Pulse Current: 1 A

Operating Supply Voltage: 5.5 V

Vesd - Voltage ESD Contact: 8 kV

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
