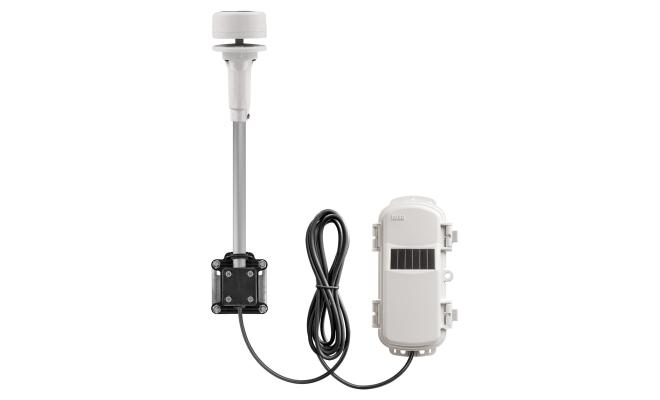

Onset RXW-WCG-921 HOBOnet Ultrasonic Wind Speed & Direction Sensor (0~41.16 m/s, 0~359 degree)

921 MHz

Wireless mote:

  Operating Temperature Range: -25° to 60°C (-13° to 140°F) with rechargeable batteries

                                                     -40° to 70°C (-40° to 158°F) with lithium batteries

  Logging Rate: 1 minute to 18 hours

  Number of Data Channels: 4

  Battery Type/Power Source: Sensor: Photovoltaic panel, LIFEP04 3.2 V -600 mAh battery

                                                Mote: Two AA 1.2 V rechargeable NiMH batteries powered by built-in

solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to 70°C (-40° to 158°F)

  Memory: 16 MB

  Dimensions: Sensor length: 380 mm (14.96 inches)

                       Sensor head diameter: 60 mm (2.36 inches)

                       Sensor rod diameter: 16 mm (0.63 inches)

                       Cable length: 3 m (9.8 ft)

                       Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)

  Weight: Sensor and cable: 200 g (7 oz)

               Mote: 223 g (7.87 oz)

Wind speed/gust:

  Measurement Range: 0 to 41.16 m/s (0 to 92.07 mph)

  Accuracy: ±0.8 m/s (1.79 mph) or ±4% of reading, whichever is greater

  Resolution: 0.4 m/s (0.89 mph)

Wind Direction:

  Measurement Range: 0 to 359 degrees

  Accuracy: 0.2 to 3 m/s (0.44–6.7 mph): ±4 degrees

                  >3 m/s (6.7 mph): ±2 degrees

  Resolution: 1 degree (0 to 359 degrees)

What's In The Box:

  HOBOnet Ultrasonic Wind Speed & Direction Sensor

  Zip ties and screws for mounting

A wireless ultrasonic wind speed & direction sensor that works with HOBOnet. Compact and rugged, with no moving parts, this ultrasonic sensor can measure very low wind speeds, down to 0.4 m/s (compared to 1.0 m/s for our mechanical sensors). HOBOnet wireless sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset's innovative cloud software platform.

Manual
