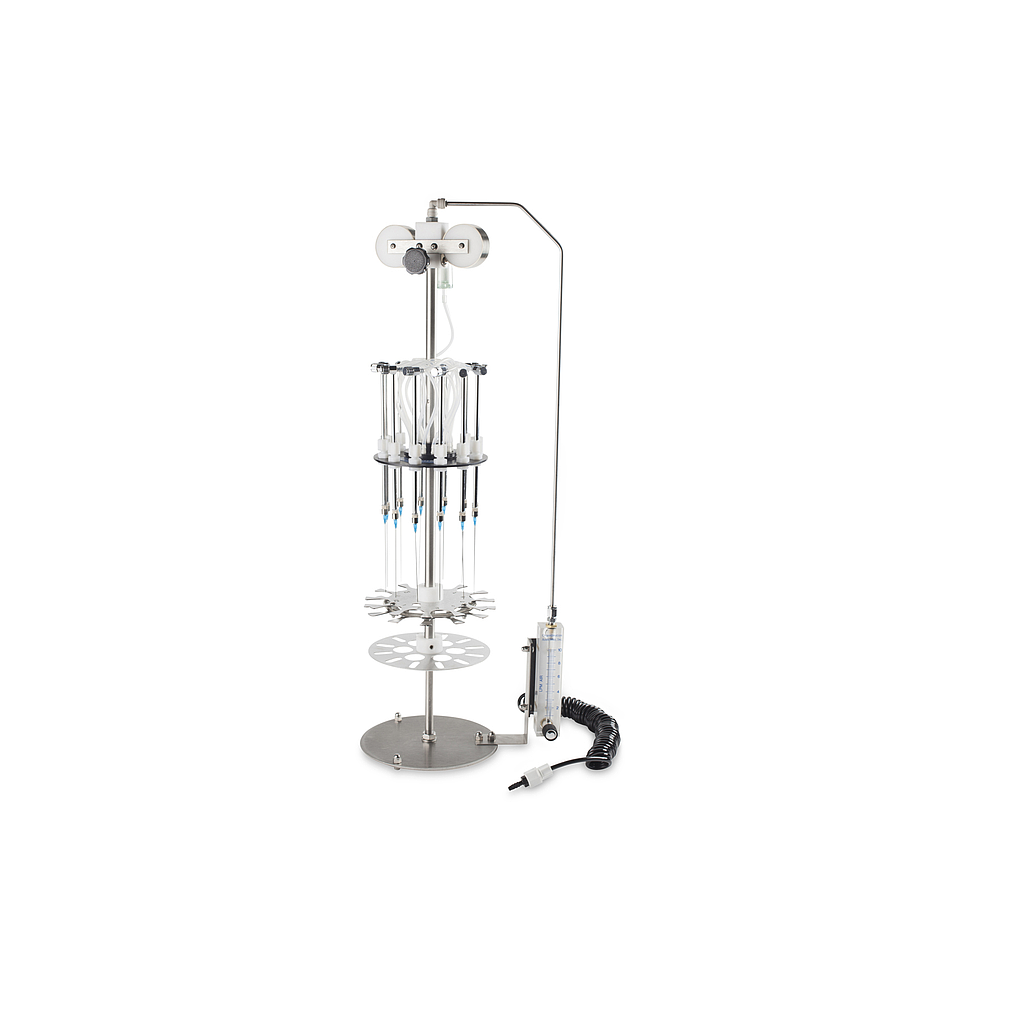

Organomation 12 Position N-EVAP Nitrogen Evaporator (No Bath; 31 x 21 x 79 cm; 12 sample plates)

Bath Type: none

Number of Sample Positions: 12

Overall Dimensions (W x D x H): 31 x 21 x 79 cm

Standard Sample Holder Test Tube Range: 10-30 mm OD

Optional Sample Holder Test Tube Range: 5-16 mm OD

Gas Flow Meter: 0-10 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19 ga

Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly

Standard Gas Input Range: 20-30 psi

Models come with a base and stand assembly instead of a heated bath. These instruments are designed for evaporation procedures performed at ambient temperature.
