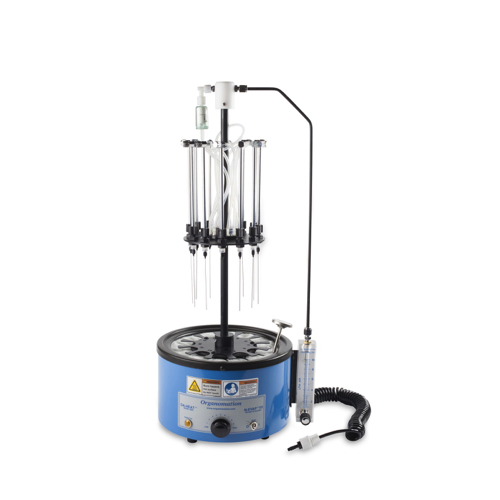

Organomation 12 Position N-EVAP Nitrogen Evaporator (10-30 mm; 0-10 LPM, 12 sample plates)

Bath Type: Water

Number of Sample Positions: 12

Overall Dimensions (W x D x H): 33 x 28 x 79 cm

Standard Sample Holder Test Tube Range: 10-30 mm OD

Optional Sample Holder Test Tube Range: 5-16 mm OD

Gas Flow Meter: 0-10 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19 ga

Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly

Standard Gas Input Range: 20-30 psi

Heating Device

Bath Model Number: 5585

Heating Medium: Water

Inside Bath Dimensions (Diameter x Depth): 21.6 x 11.4 cm

Outside Bath Dimensions: 33 x 28 x 18 cm (W x D x H)

Total Wattage: 550 W

Bath Temperature Range: 30-90 °C

Temperature Controller Type and Controller Accuracy: Mechanical +/-2°C
