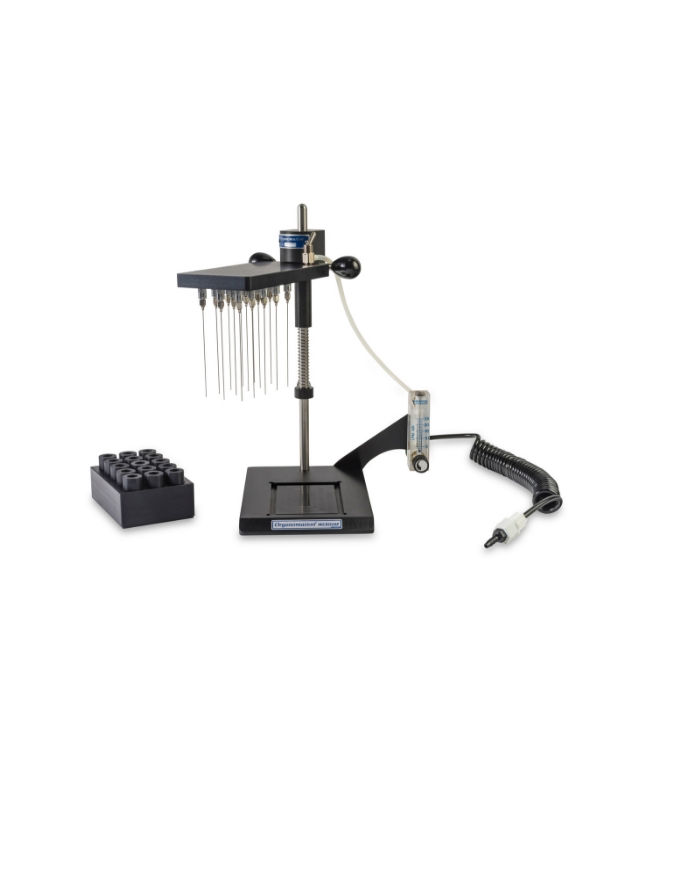

Organomation 15 Position MICROVAP Nitrogen Evaporator (None heating platform ; 21.6 x 33 x 35.6 cm; 15 sample plates)

Heater Type: None

Overall Dimensions (W x D x H): 21.6 x 33 x 35.6 cm

Number of Sample: 15

Heat Block Dimensions (W x D): 8.9 x 13 cm

Test Tube Diameter: 10-22 mm OD

Center to Center Spacing Between Positions: 2.54 cm

Gas Manifold Layout: 3 x 5 Array

Gas Flow Meter: 0-25 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19ga

Hoist Assembly: Spring Assisted Hoist Assembly

Built-in Gas Regulator Input: 20-30 psi

Manifold and stand only: no heating platform

Datasheet
