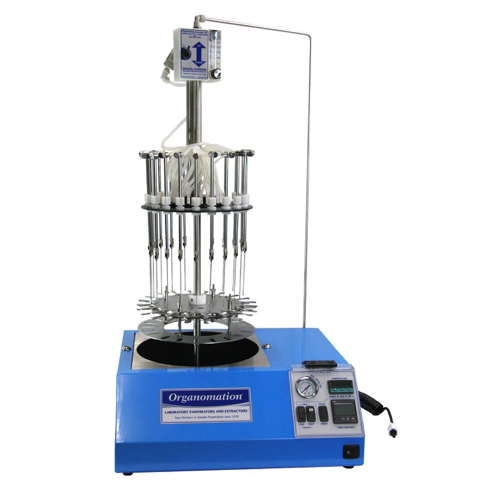

Organomation 20 Position Auto N-EVAP Nitrogen Evaporator (Water bath; 49 x 46 x 92 cm; 20 sample plates)

Bath Type: Water

Number of Sample Positions: 20

Overall Dimensions (W x D x H): 49 x 46 x 92 cm

Standard Sample Holder Test Tube Range: 10-30 mm

Gas Flow Meter: 0-25 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19 ga

Sample Tray Lift Mechanism: Pneumatic Gas Piston

Standard Gas Input Range: 50-110 psi

Heating Device

Bath Model Number: 11196

Heating Medium: Water

Inside Bath Dimensions (Diameter x Depth): 28 x 14 cm

Outside Bath Dimensions (W x D x H): 49 x 46 x 18 cm

Total Wattage: 1100 W

Bath Temperature Range: 30-100 °C

Temperature Controller Type and Controller Accuracy: Digital +/- 2°C

Datasheet
