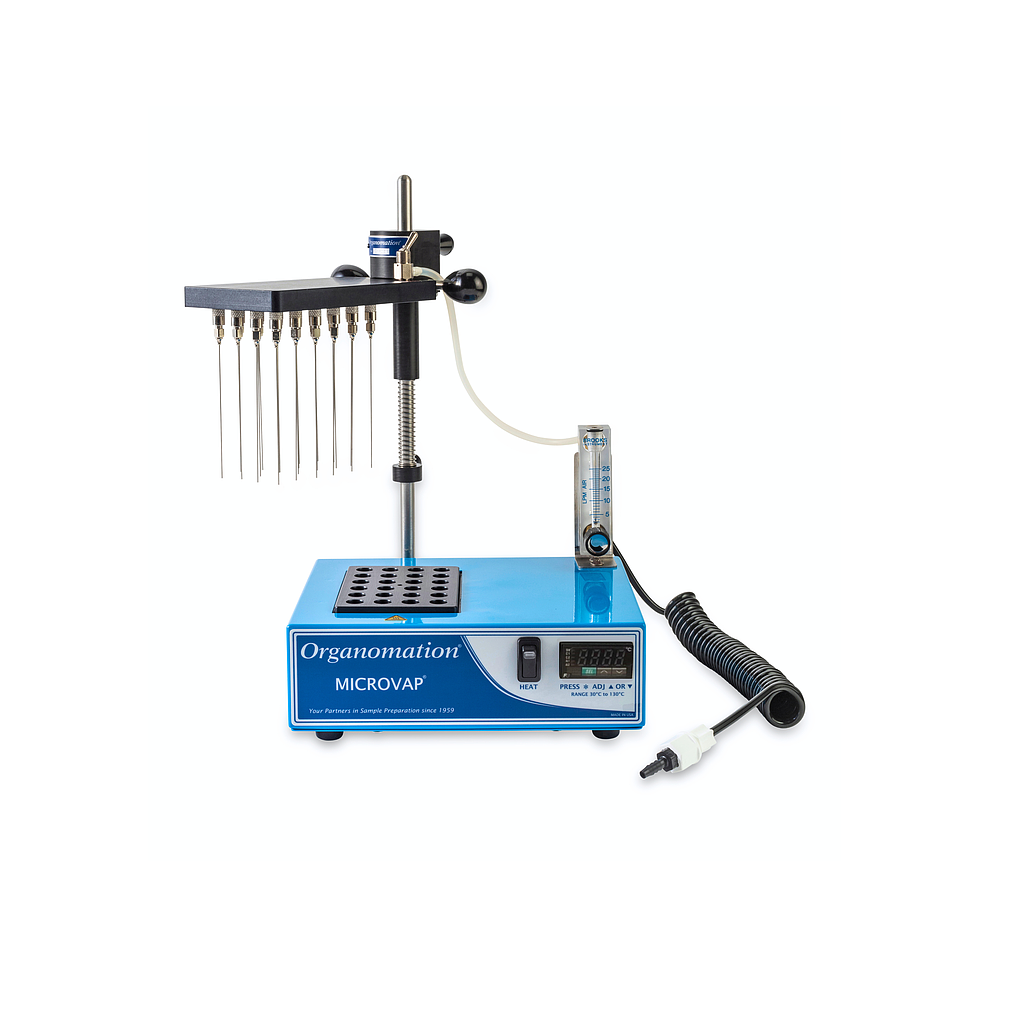

Organomation 24 Position MICROVAP Nitrogen Evaporator (Dry Block; 25.4 x 31.75 x 43.18 cm; 24 sample plates)

Heater Type: Dry Block

Overall Dimensions (W x D x H): 25.4 x 31.75 x 43.18 cm

Number of Sample: 24

Heat Block Dimensions (W x D): 8.9 x 13 cm

Test Tube Diameter: 10-17 mm OD

Center to Center Spacing Between Positions: 1.98 cm

Gas Manifold Layout: 4 x 6 Array

Gas Flow Meter: 0-25 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19ga

Hoist Assembly: Spring Assisted Hoist Assembly

Built-in Gas Regulator Input: 20-30 psi

Heating Device Specifications

Model Number: 1813A

Outside Dimensions (W x D x H): 25.4 x 24.8 x 8.9 cm

Total Wattage: 180 W

Temperature Range: Room temp - 130 °C

Temperature Controller Type and Controller Accuracy Digital: +/- 2 °C
