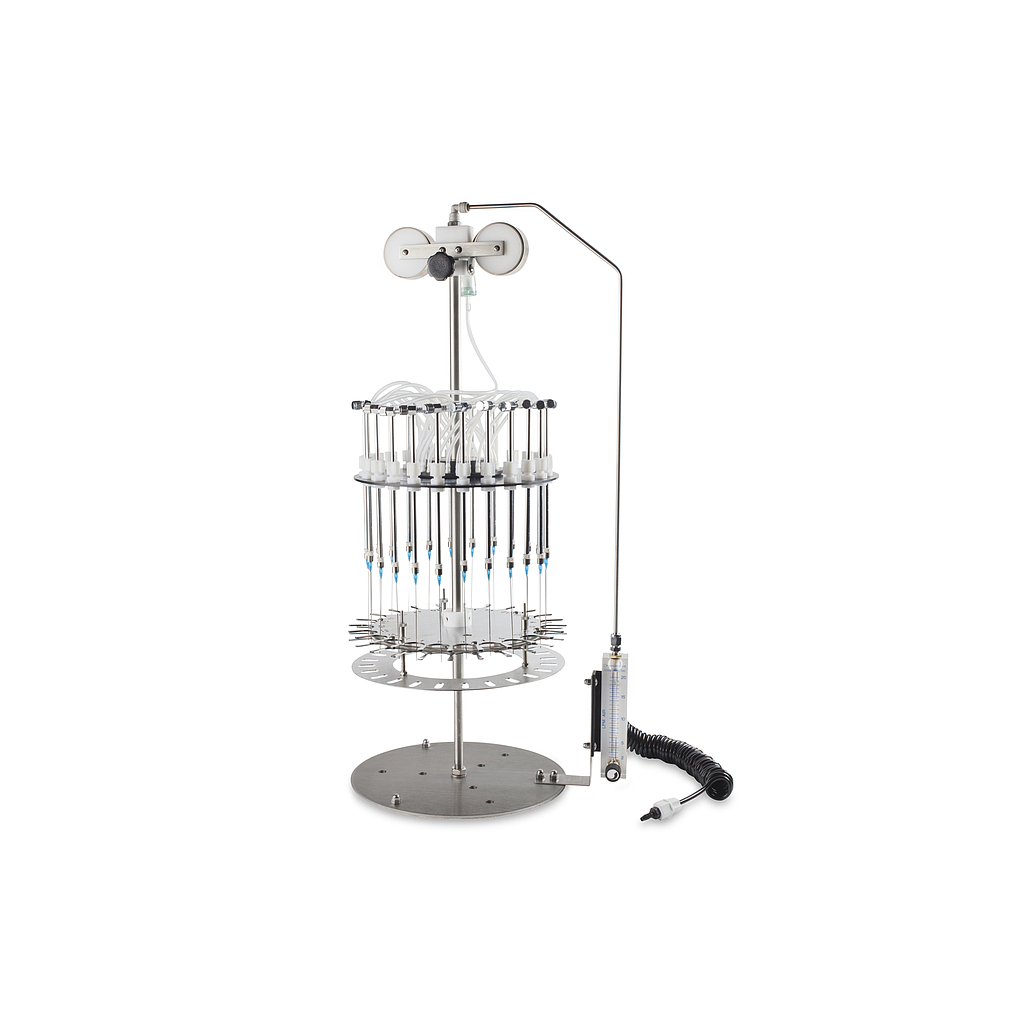

Organomation 24 Position N-EVAP Nitrogen Evaporator (No Bath; 39 x 31 x 81 cm; 24 sample plates)

Bath Type: None

Number of Sample Positions: 24

Overall Dimensions (W x D x H): 39 x 31 x 81 cm

Standard Sample Holder Test Tube Range: 10-30 mm OD

Optional Sample Holder Test Tube Range: 30-70 mm OD

Gas Flow Meter: 0-20 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19 ga

Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly

Standard Gas Input Range: 20-30 psi

Model come with a base and stand assembly instead of a heated bath. These instruments are designed for evaporation procedures performed at ambient temperature.
