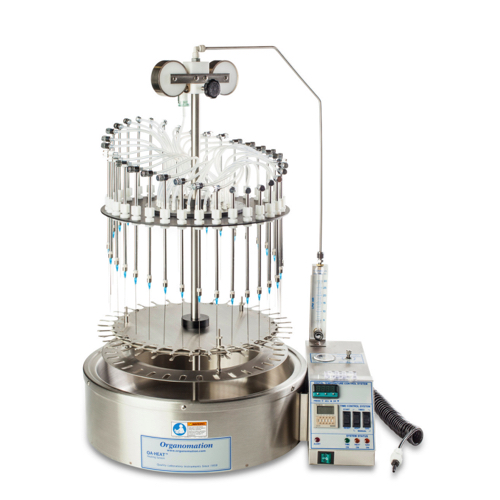

Organomation 34 Position N-EVAP Nitrogen Evaporator (Water Bath; 61 x 48 x 86 cm; 34 sample plates)

Bath Type: Water

Number of Sample Positions: 34

Overall Dimensions (W x D x H): 61 x 48 x 86 cm

Standard Sample Holder Test Tube Range: 10-30 mm OD

Gas Flow Meter: 0-30 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19 ga

Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly

Standard Gas Input Range: 50-110 psi

Heating Device

Bath Model Number: 13615

Heating Medium: Water

Inside Bath Dimensions (Diameter x Depth): 40.6 x 11.4 cm

Outside Bath Dimensions: 61 x 48 x 15 cm (W x D x H)

Total Wattage: 1300 W

Bath Temperature Range: 30-90 °C

Temperature Controller Type and Controller Accuracy: Digital +/-2°C

*Images for illustrative purposes only.

Datasheet
