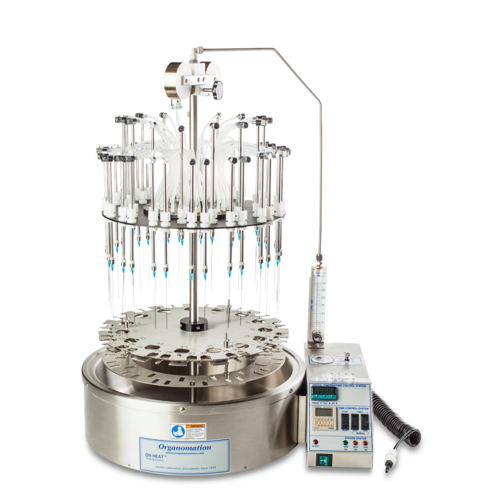

Organomation 45 Position N-EVAP Nitrogen Evaporator (Water bath; 61 x 48 x 86 cm; 45 sample plates)

Bath Type: Water

Number of Sample Positions: 45

Overall Dimensions (W x D x H): 61 x 48 x 86 cm

Standard Sample Holder Test Tube Range

Outer Ring: 10-19 mm OD (30 positions)

Inner Ring: 16-30 mm OD; minimum height of 70 mm (15 positions)

Gas Flow Meter: 0-30 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19 ga

Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly

Standard Gas Input Range: 50-110 psi

Heating Device

Bath Model Number: 13165

Heating Medium: Water

Inside Bath Dimensions (Diameter x Depth) : 40.6 x 11.4 cm

Outside Bath Dimensions (W x D x H): 61 x 48 x 15 cm

Total Wattage: 1300 W

Bath Temperature Range: 30-90 °C

Temperature Controller Type and Controller Accuracy Digital: +/- 2°C

*Images for illustrative purposes only.
