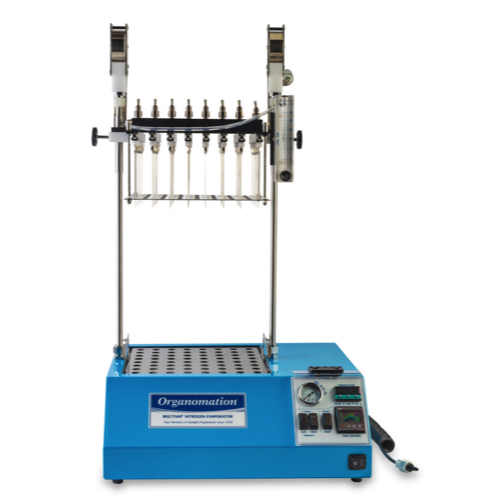

Organomation 64 Position MULTIVAP Nitrogen Evaporator (48 x 43 x 86 cm; 64 sample plates)

Heater Type: Water Bath

Number of Sample Positions: 64

Overall Dimensions (W x D x H): 48 x 43 x 86 cm

Test Tube Diameter: 11-30 mm OD

Gas Manifold Layout: 8 x 8 Array

Center to Center Spacing Between Positions: 3.33 cm

Gas Flow Meter: 0-30 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19ga

Hoist Assembly: Dual Pulley and Band Springs

Built-in Gas Regulator Input: 30-110 psi

Heating Device Specifications

Model Number: 11196

Inside Dimensions (Diameter x Depth): 28 x 14 cm

Outside Dimensions (W x D x H): 48 x 43 x 18 cm

Total Wattage: 1100 W

Temperature Range: 30-100 °C

Temperature Controller Type and Controller Accuracy Digital: +/- 2 °C
