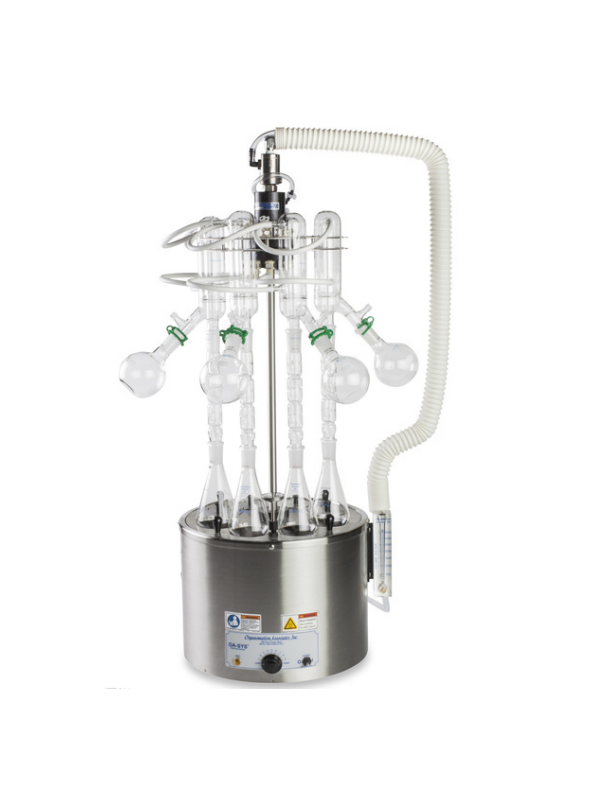

Organomation 8 Position S-EVAP-KD Solvent Evaporator (8 samples; 61 x 56 x 102 cm; 46 x 41 x 102 cm)

Number of Samples: 8

Application: Kuderna-Danish Flasks/Deep Bath

Individual Solvent Collection Specifications

Overall Dimensions: 61 x 56 x 102 cm

Glassware 250 mL: GS2152

Sample Flask Type and Size: Kuderna-Danish; 250ml, 19/22, 24/40

Concentrator Tube Type and Size: Insulated Tip; 10 mL, 19/22

Snyder Column Type and Size: Three Ball; 253 mm, 24/40

Condenser Type and Size: Inverted Hopkins; 260 mm, 24/40

Collection Flask Type and Size: Round with Flat Bottom; 250 mL

Central Solvent Collection Specifications

Overall Dimensions (W x D x H): 46 x 41 x 102 cm

Glassware 250 mL: GS2152-C

Sample Flask Type and Size: Kuderna-Danish; 250ml, 19/22, 24/40

Concentrator Tube Type and Size: Insulated Tip; 10 mL, 19/22

Snyder Column Type and Size: Three Ball; 253 mm, 24/40

Condenser Type and Size: Inverted Hopkins; 260 mm, 24/40; ¼ in Tube Fitting

Central Collection Flask Type and Size: 8 Port; Round 2.5 L

Central Collection Flask Catalog Number: GS2156-C8

Heating Device Specifications

Bath Model Number: 13129

Inside Dimensions (Diameter x Depth): 30.5 x 21.6 cm

Outside Dimensions (W x D x H): 46 x 41 x 28 cm

Total Wattage: 1300 W

Bath Temperature Range: 30-100 °C

Temperature Controller Type and Controller Accuracy Digital: ±2 °C
