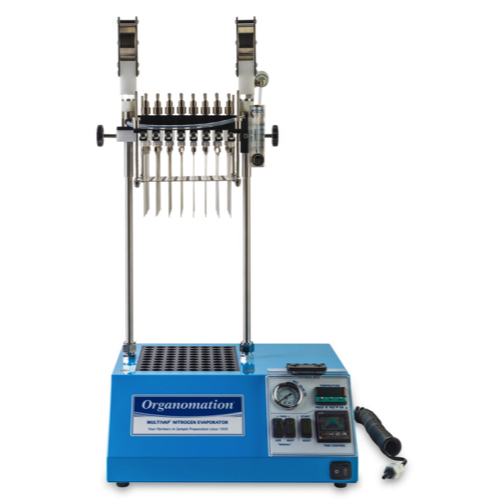

Organomation 80 Position MULTIVAP Nitrogen Evaporator (None heating platform; 39 x 36 x 76 cm; 80 sample plates)

Heater Type: None

Number of Sample Positions: 80

Overall Dimensions (W x D x H): 39 x 38 x66 cm

Test Tube Diameter: 10-17 mm OD

Gas Manifold Layout: 8 x 10 Array

Center to Center Spacing Between Positions: 2.03 cm

Gas Flow Meter: 0-25 LPM

Stainless Steel Needles Length and Gauge: 102 mm x 19ga

Hoist Assembly: Dual Pulley and Band Springs

Built-in Gas Regulator Input: 30-110 psi

Manifold and stand only: no heating platform

*Images for illustrative purposes only.
