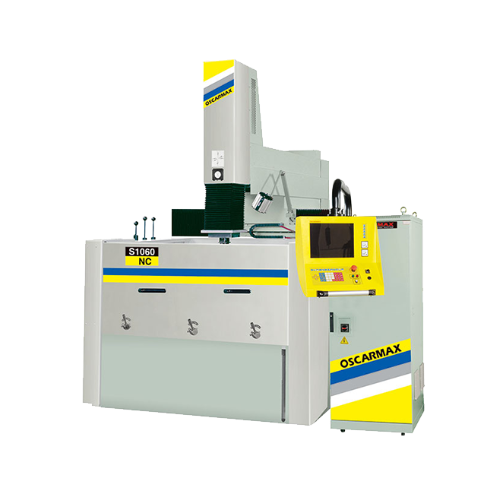

OscarMax S1060 NC Die Sinker Electrical Discharge Machine (1670 x 990 mm, 12KVA)

Table Travel (X DM/SM): 1000 mm

Table Travel (Y): 600 mm

Servo Travel (Z): 500 mm

Max. Workpiece Dimensions (WxD): 1670 x 990 mm

Max. Filling Height of Dielectric Tank: 460 mm

Distance Between Chuck to Table: 260 - 760 mm

Max. Workpiece Weight: 4500 kg

Max. Electrode Weight: 350 kg

Table Size (WxD): 1250 x 750 mm

Machine Weight: 5500 kg

Generator

Max. Working Current: 120A

Overall Power Consumption: 12KVA

Weight: 380kg

Dielectric

Tank Capacity: 1610  L

Filter Density: 20 μm

Filter Elements: 6 pcs
