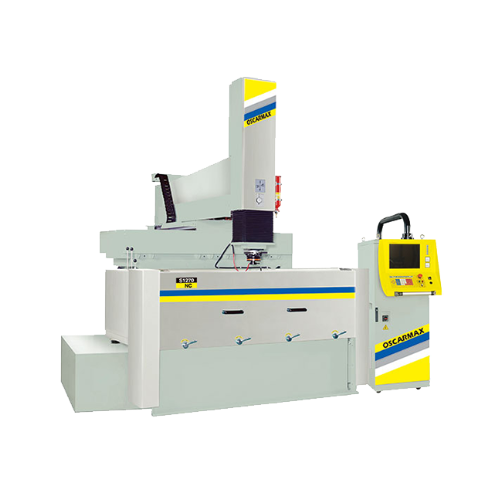

OscarMax S1270 NC Die Sinker Electrical Discharge Machine (1860 x 1120 mm, 12KVA)

Table Travel (X DM/SM): 1200 mm

Table Travel (Y): 700 mm

Servo Travel (Z): 500 mm

Max. Workpiece Dimensions (WxD): 1860 x 1120 mm

Max. Filling Height of Dielectric Tank: 460 mm

Distance Between Chuck to Table: 395 - 895 mm

Max. Workpiece Weight: 5000 kg

Max. Electrode Weight: 400 kg

Table Size (WxD): 1350 x 820 mm

Machine Weight: 6500 kg

Generator

Max. Working Current: 120A

Overall Power Consumption: 12KVA

Weight: 380kg

Dielectric

Tank Capacity: 1875  L

Filter Density: 20 μm

Filter Elements: 6 pcs
