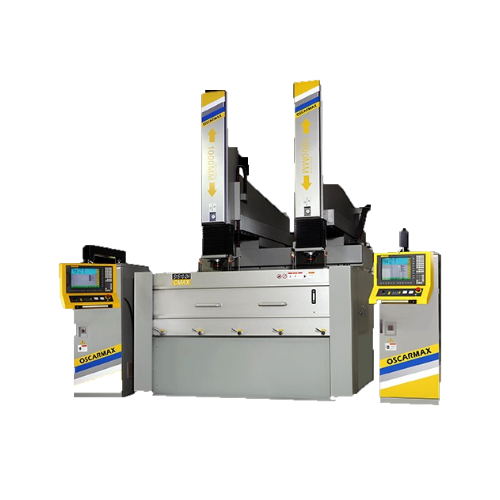

OscarMax S1510-2H CMAX Die Sinker Electrical Discharge Machine (2070 x 1570 mm, 12KVA)

Table Travel (X DM/SM): 430 / 860 mm

Table Travel (Y): 1000 mm

Table Travel (Z): 600 mm

Max. Workpiece Dimensions (WxD): 2070 x 1570 mm

Max. Filling Height of Dielectric Tank: 585 mm

Distance Between Chuck to Table: 560 - 1160 mm

Max. Workpiece Weight: 11000 kg

Max. Electrode Weight: 500 kg

Table Size (WxD): 1580 x 1100 mm

Machine Weight: 16200 kg

Generator

Max. Working Current: 120A

Overall Power Consumption: 12KVA

Weight: 380kg

Dielectric

Tank Capacity: 3410 L

Filter Density: 20 μm

Filter Elements: 12 pcs
