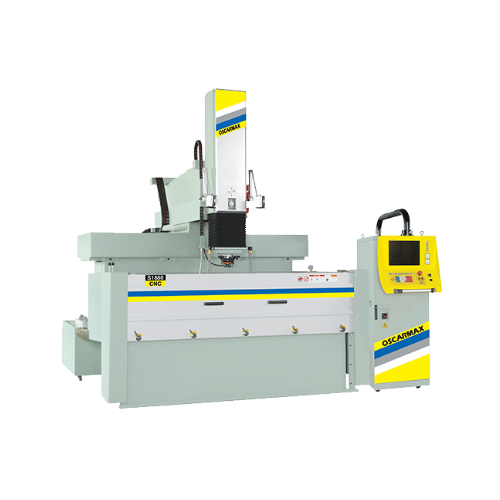

OscarMax S1880 CNC Die Sinker Electrical Discharge Machine (2420 x 1220 mm, 12KVA)

Table Travel (X DM/SM): 1800 mm

Table Travel (Y): 800 mm

Table Travel (Z): 600 mm

Max. Workpiece Dimensions (WxD): 2420 x 1220 mm

Max. Filling Height of Dielectric Tank: 505 mm

Distance Between Chuck to Table: 305 - 905 mm

Max. Workpiece Weight: 7000 kg

Max. Electrode Weight: 500 kg

Table Size (WxD): 1850 x 1000 mm

Machine Weight: 9000 kg

Generator

Max. Working Current: 120A

Overall Power Consumption: 12KVA

Weight: 380kg

Dielectric

Tank Capacity: 2715  L

Filter Density: 20 μm

Filter Elements: 8 pcs
