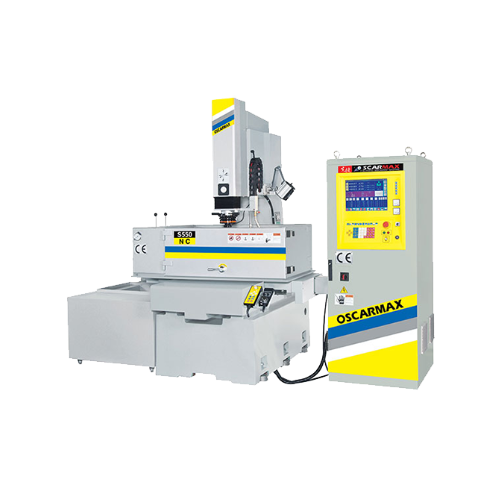

OscarMax S550 NC Die Sinker Electrical Discharge Machine (1100 x 630 mm, 6KVA)

Table Travel (X DM/SM): 500 mm

Table Travel (Y): 400 mm

Servo Travel (Z): 200 mm

Servo Travel (Z2): 300 mm

Max. Workpiece Dimensions (WxD): 1100 x 630 mm

Max. Filling Height of Dielectric Tank: 260 mm

Distance Between Chuck to Table: 100 - 600 mm

Max. Workpiece Weight: 1350 kg

Max. Electrode Weight: 220 kg

Table Size (WxD): 800 x 450 mm

Machine Weight: 1950 kg

Generator

Max. Working Current: 60A

Overall Power Consumption: 6KVA

Weight: 320kg

Dielectric

Tank Capacity: 520  L

Filter Density: 20 μm

Filter Elements: 3 pc
