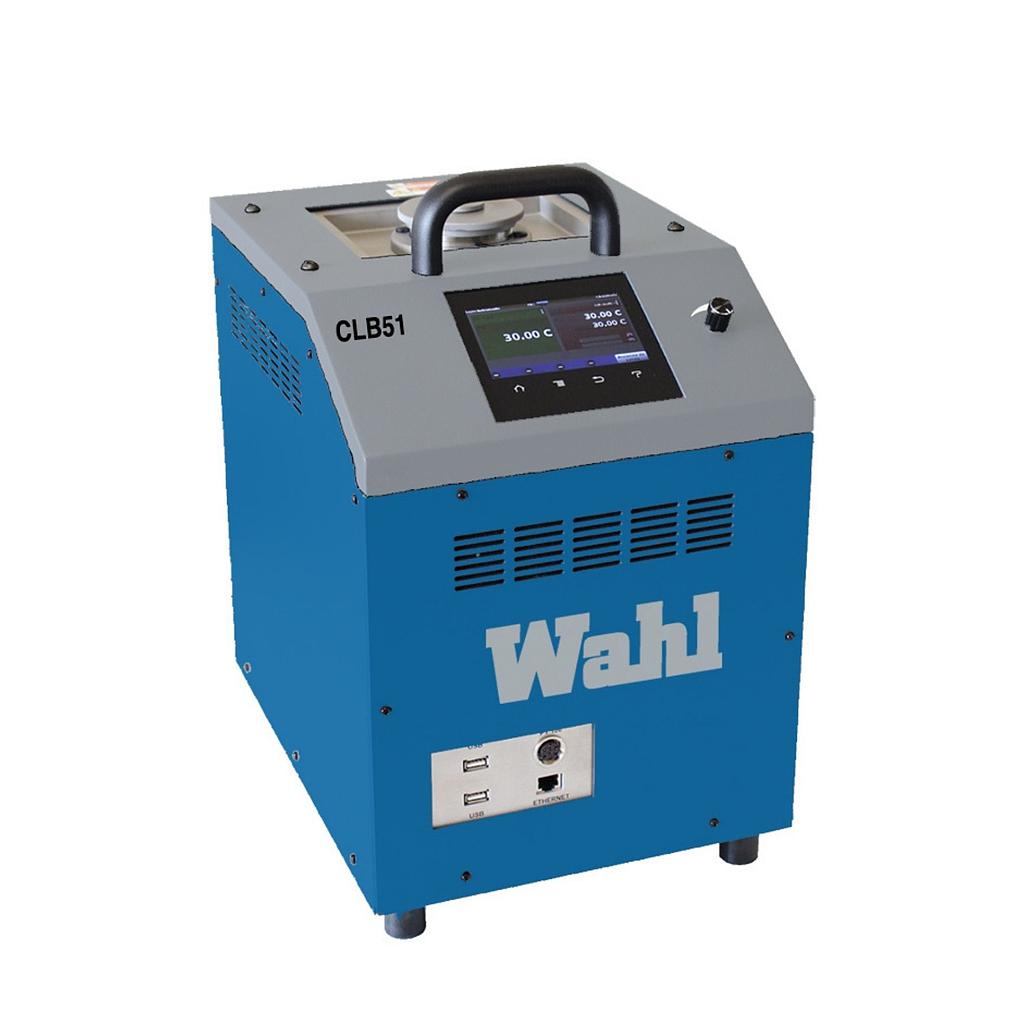

Palmer Wahl CLB51 Calibration Liquid Baths (30 - 225˚C / 86 - 437°F, 320W)

Type: High Temperature Liquid Bath, User Selectable Scale

Temperature Range: 30˚ to 225˚C / 86° to 437°F

Temperature Stability: ± 0.02°F / ± 0.01˚C

Temperature Uniformity: ± 0.09°F / ± 0.05˚C

Accuracy: ± 0.18˚F / ± 0.1˚C

Heating Time:  77˚ to 428˚F: 42 min. (25˚ to 220˚C: 42 min.)

Cooling Time: 428˚ to 212˚F: 35 min. (220˚ to 100˚C: 35 min.)

Immersion Depth: 7.48 inches (190 mm)

Well Diameter: 2.36 inches (60 mm)

Well Capacity: 0.7 liters

Unit Dimensions: 11.02 inches x 14.56 inches x 17.32 inches (280mm x 370mm x 440mm), with handle.

Weight: 25.13 pounds (11.4 kg)

Power Supply: 100 to 234 Vac, 50 to 60 Hz

Power Consumption: 320 W Max
