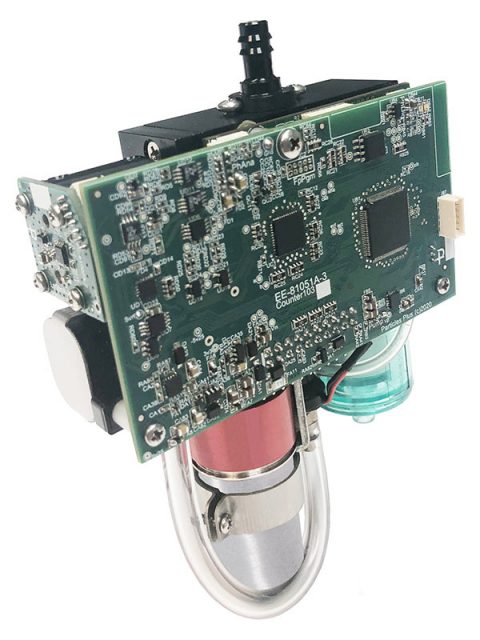

Particles Plus 9300P-OEM Airborne Particle Counter Sensor (0.3 - 25 μm; 1.2 LPM / ±3%)

Size Range: 0.3 to 25 μm

Size Channels: Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm

Counting Efficiency: 50% @ 0.3μm; 100% for particles > 0.45 μm per JIS

Flow Rate / Accuracy: 1.2 LPM / ±3%

Concentration Limits: 27,000,000 particles/ft3 @ 10% coincidence (per ISO 21501-4), No appreciable drift. 50,000,000 particles/ft3 @ 10% coincidence (as tested and validated1)

Aerosol Concentration Range: 0.01 to 20,000 μg/m3

Light Source: Long life laser diode

Zero Count: <1 count / 60 minutes (<1 particles / 6 ft3). No fault count subtraction. No appreciable drift.

Resolution: 0.00003 μg/m3

Calibration: NIST Traceable

Internal Vacuum Pump: Integrated pump

Filtered Exhaust: HEPA filtered exhaust

Airflow: Internally monitored

Number of Channels: Up to 30 channels

Alarm: Adjustable built-in alarm

Communication Modes: Modbus (RTU/ASCII) via 3.3v UART

Standards: ISO 21501-4 and JIS B9921

Instrument Calibration: Recommended minimum once a year

Dimensions (L x W x H): 3.41 x 4.89 x 1.57 in (8.7 x 12.4 x 4.0 cm) includes inlet

Weight: 13 oz (368 grams)

Optional Accessories: 9300P-OEM Starter kit, 9000 Series Breakout Board, Square Base with flanges

Data Storage: 65,000 sample records (rotating buffer) with environmental data

Sample Time: 1 second to 99 hours

Power: 7 - 15 Vdc (< 2 watts max)

Operating Conditions: 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing RH

Storage Conditions: 32° to 122°F (0° - 50°C) / < 98% non-condensing RH
