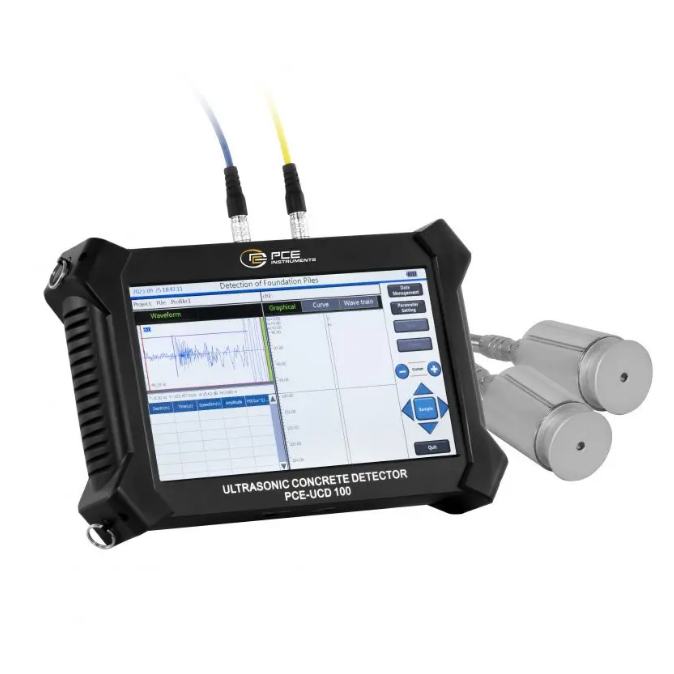

PCE PCE-UCD 100 초음파 시험기 (-1677700 µs~+1677700 µs;0.05 µs)

- Acoustic Signal Range:

Measurement Range: -1677700 µs ... +1677700 µs

Resolution: 0.05 µs

- General Technical Data:

Measurement Functions: Detection of concrete piles, concrete strength, depth and width of voids, cracks

Measurement Interval: 0.05 ... 409.6 µs

Display Type: TFT color display

Display Size: 10.1 inches

Data Interface: USB

Battery Capacity: 8100 mAh

Battery Voltage: 11.1 V

Battery Type: Lithium-ion battery

Bandwidth: 1 ... 500 kHz

Test Voltage: 125 V, 250 V, 500 V, 1000 V

Gain Range: 146 dB

Menu Language: English, Chinese

Protection Class: IP20

Power Supply: Mains, Battery

Weight: 2160 g

Device Weight with Accessories: 8152 g

Device Weight with Accessories and Packaging: 8700 g

Dimensions (L x W x H): 300 x 200 x 58 mm

Additional Dimensions: Sensor Cable Length: approximately 10 m

Operating Conditions: 0 ... 50 °C, 10 ... 85 % r.F.

Storage Conditions: 0 ... 50 °C, 10 ... 85 % r.F.

- Delivery Scope:

1 x Ultrasonic Tester / Ultrasonic Testing PCE-UCD 100

2 x Ultrasonic sensors

1 x Camera

1 x Ultrasonic contact gel

2 x Signal cables

1 x Camera cable

1 x Carrying strap

1 x USB stick with software

1 x Measurement template

1 x Mains adapter with IEC cable

1 x Plastic case

1 x User manual
