Specifications
Output: 125 kHz
External Voltage Identification Area: DC 12 ... 400 V ± 2.5%; AC 12 ... 400 V (50 ... 60 Hz) ± 2.5%
Display: LCD
Maximum Voltage: Max. 400 V AC / DC
Overvoltage Category: CAT III 300 V
Pollution Degree: 2
Power Supply: 9 V battery
Power Consumption (minimum voltage): approximately 31 mA
Power Consumption (maximum voltage): about 115 mA
Backup: F 0.5 A 500 V, 6.3 mm x 32 mm / 0.24 x 1.25in
Operating Conditions: 0 ... +40 ° C/+32 ... +72 ° F; rel. Humidity <80%
Storage Conditions: -20 ... +60 °C /+12 ... +92 ° F; rel. Humidity <80%
Dimensions: 190 mm x 89 mm x 42.5 mm; 7.48 in x 3.50 in x 1.67 in
Weight: 420 g / 0.92 lbs (including battery)
Technical specification for cable detector (receiver)
Detection Depth: depends on material and the particular application
Pole Application: about 0 ... 2 m / 0 ... 6.56 ft
Bipolar Application: about 0 ... 0.5 m / 0 ... 1.64 ft
Simple Loop: Up to 2.5 m / 8.2021 ft
Grid Voltage Detection: about 0 ... 0.4 m / 0 ... 1.31 ft
Display: LCD
Power Supply: 6 x 1.5V AAA batteries
Power Consumption (minimum voltage): about 32 mA
Power Consumption (maximum voltage): approximately 89 mA
Environmental Conditions: 0 ... +40 °C / +32 ... +72 ° F
rel. Humidity <80%
Storage Conditions: -20 ... +60 °C / +12 ... +92 ° F
rel. Humidity <80%
Dimensions: 241.5 mm x 78 mm x 38.5 mm; 9.5 in x 3.07 in x 1.51 in
Weight: 350 g / 0.77 lbs (including batteries
Dilivery Contents

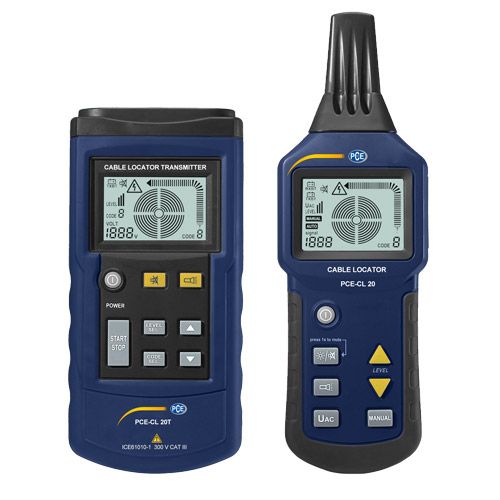

1 x PCE-CL 20 cable detector (1 x transmitter and 1 x receiver)
2 x alligator clips
2 x measuring tips
2 x test leads
1 x grounding rod
1 x carrying strap
1 x carrying bag
1 x 9 V battery
6 x 1.5 V AAA batteries
1 x user manual
