Outer size: 1200mm*1200mm*1400mm (L*W*H)
Inner size: Φ500mm*500mm (customized)
Wall thickness: 15mm
Jar Material: plexiglass
Flange thickness: 20mm
Flange material: Stainless steel
Weight: 100KG
Pressure control mode: auto
Pressure error: ±0.002 Mpa
Sensor display accuracy: 0.001Mpa
Test Depth: 0-5m
Pressure adjustment range: -0.05MPa-0.05MPa
Pressure hold time: 0-9999 s
Automatic decompression delay: 0-9999s
Delay test time: 0-9999 s
Protection device: Leakage switch protection
Working Power: 220V/50Hz
Working condition
Temperature: 5℃~35℃
Relative humidity: ≤85%
Pressure: 86kPa~106kPa

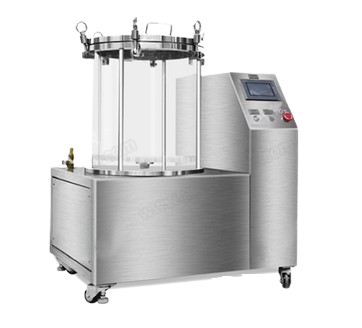

Negative pressure leak testing machine can meet the requirement of IEC60529 for IPX8 testing and IEC60598, it is mainly applied to small appliances for air tightness detecting, and the leak points can be found out during the test.The equipment is mianly consisted by transparent Sealed jar and control unit, the equipment has negative pressure test function, air pressure test function and water pressure test function.
