Material of supporting base: Insulation Bakelite
Metallic supports
Height: 100mm
Diameter: 6mm
Radius at the point: 1.6mm
Silver disc
1). 10mm in diameter, 1mm in thickness
2). A K type thermocouple is to be soldered at the center of the silver disc. The disc is to be fixed to the end of the ceramic pipe
Structure
The position of the metallic supports and thermocouple can be adjusted

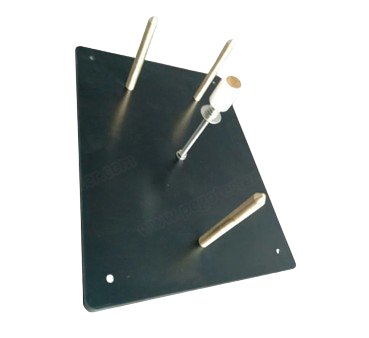

The test fixture with three-pointed metallic supports is designed to meet the test requirement of IEC60335-2-3 clause 11.2 and UL1005 clause 26.6&figure 26.1 for heating test of electrical irons. The supports have a height of 100mm. The soleplate of the irons in the horizontal position placed on three pointed metallic supports to tightly contact with silver disc, then transfer heat to the thermocouple through the silver disc for testing.
