PEGO PG-WDFA 최대 및 최소 인출력 시험 장치 (≤10A, ＞16A~32A)

Rated value      | Polarity | Max for multiplex pin gauge | Min for single pin gauge | Max for single pin gauge

≤10A             | 2        | 40                          | 1.5                       | 17

                     | 3        | 50                          | 1.5                       | 17

>10A~16A         | 2        | 50                          | 2                         | 18

                          | 3        | 54                          | 2                         | 18

                          | >3       | 70                         | 2                         | 18

>16A~32A         | 2        | 80                          | 3                         | 27

                          | 3        | 80                          | 3                         | 27

                          | >3       | 100                       | 3                         | 27

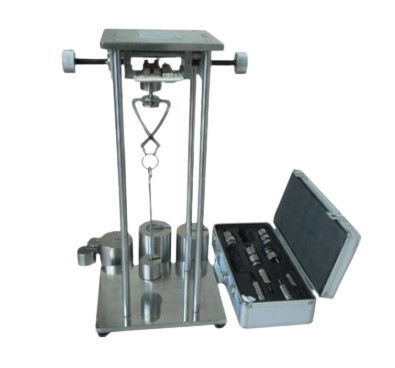

Maximum and minimum withdrawal force test apparatus is designed to meet the test requirements of IEC60884-1 clause 22 and figures 18/19 and VDE0620. It is to evaluate the maximum and minimum insertion and withdrawal of the plug from socket-outlet. The test apparatus consists of mounting plate, clamp, carrier, principal weight and supplementary weight. The apparatus is suitable for testing the socket-outlets with rated voltage not exceeding 250V and rated current less than 16A. The test plug and test pin gauge can be customized as per customers demands.
